2. FRAME COVERS/EXHAUST MUFFLER
2-10
MXU 300/250

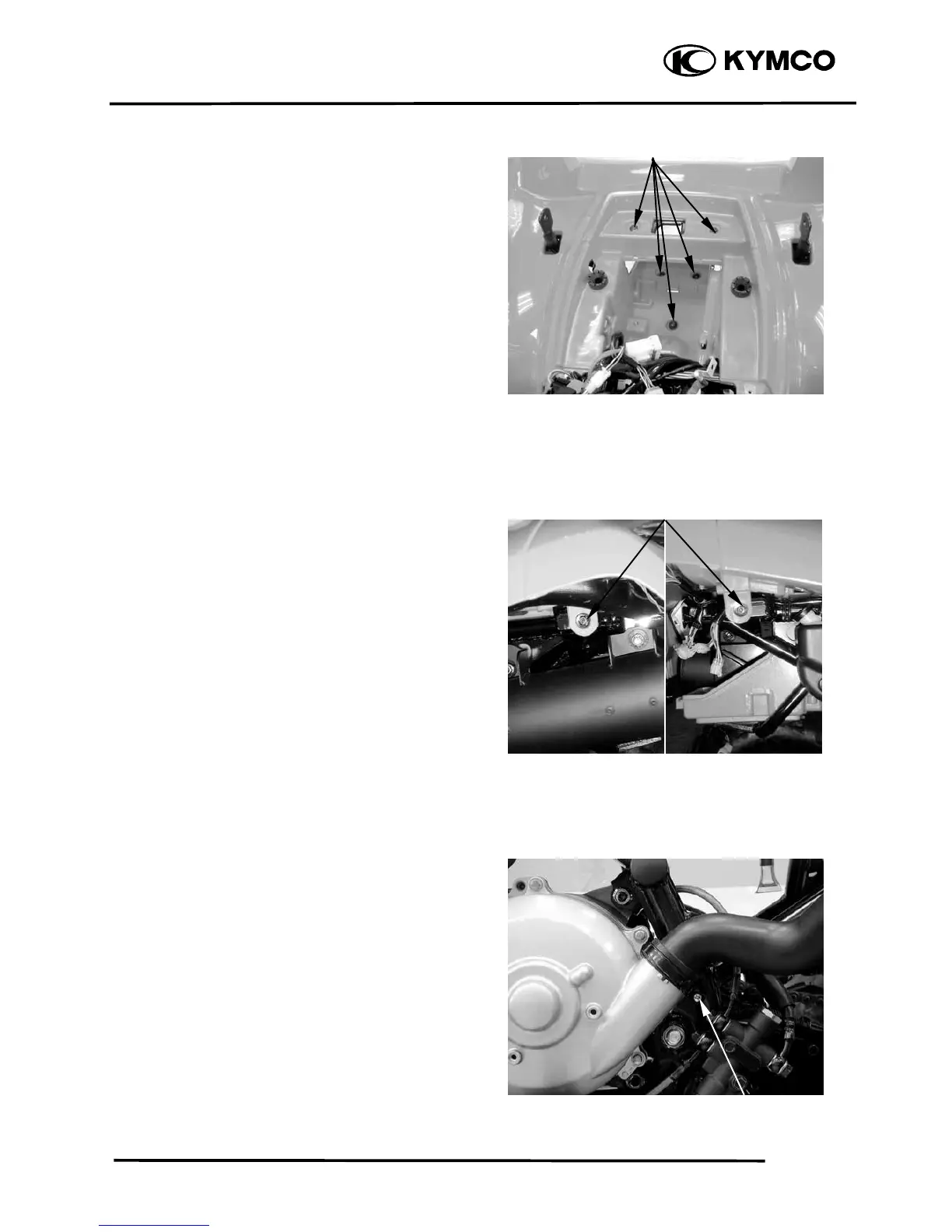

Remove the five bolts from the rear fender.
Remove the two bolts under the rear fender
right/left side.
Loosen the air outlet hose band screw and
disconnect the air outlet hose from the V-
belt compartment cover, then remove the
rear fender.
Installation is in the reverse order of
removal.
Screw
Bolts
Bolts
To Next Page
