2. FRAME COVERS/EXHAUST MUFFLER
2-9
MXU 300/250

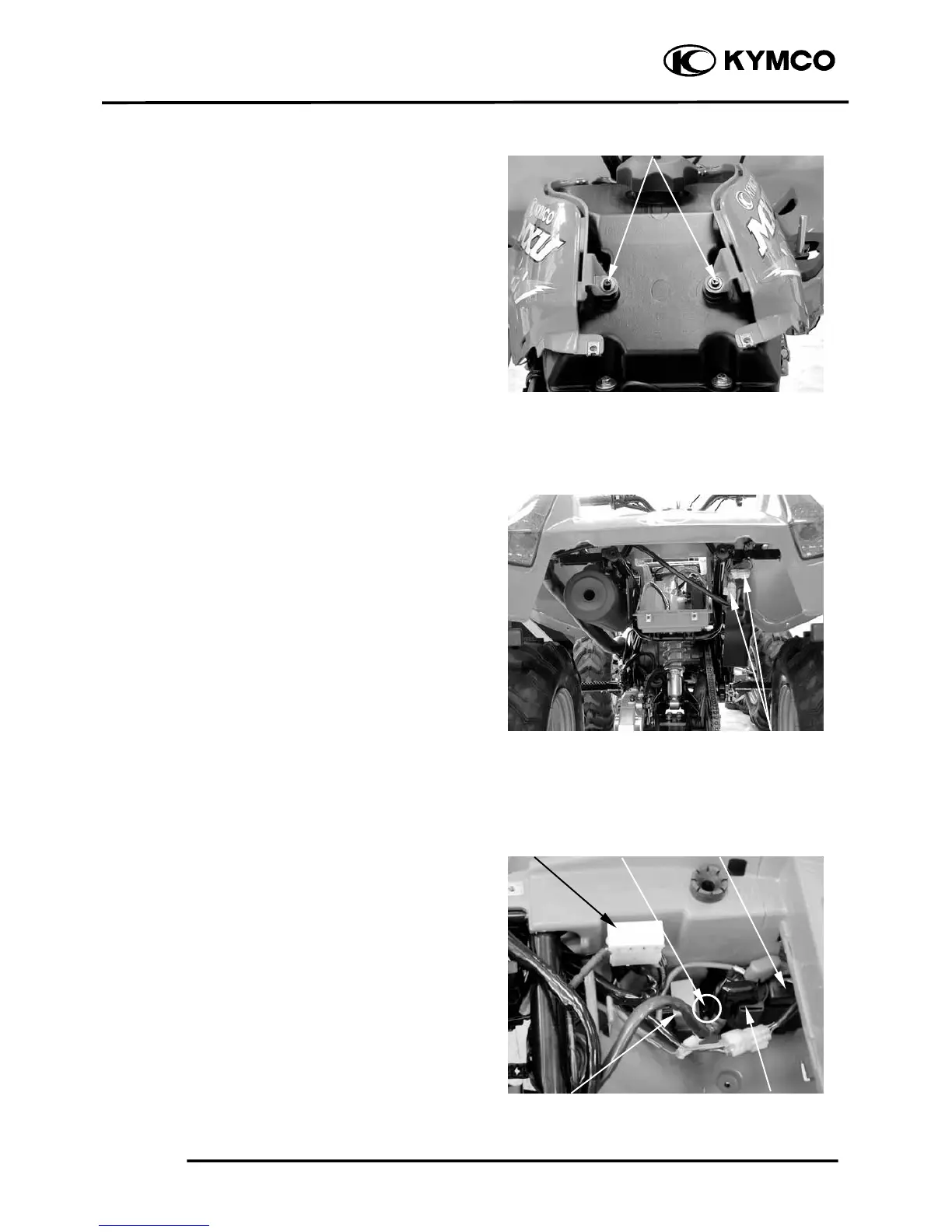

Remove the two screws and front fender.
Installation is in the reverse order of
removal.
REAR FENDER
REMOVAL/INSTALLATION
Remove rear cargo rack (see page 2-5),
battery (see chapter 16) and right/left side
cover.
Disconnect the right and left taillight
connectors.
Remove the fuse box.
Remove the holder screw, then remove the
change gear control unit and starter relay.
Remove the ignition control module.
Change Gear Control Unit Starter Relay
Fuse Box Screw Ignition Control Module
Taillight Connectors
Screws
To Next Page
