2. FRAME COVERS/EXHAUST MUFFLER
2-8
MXU 300/250

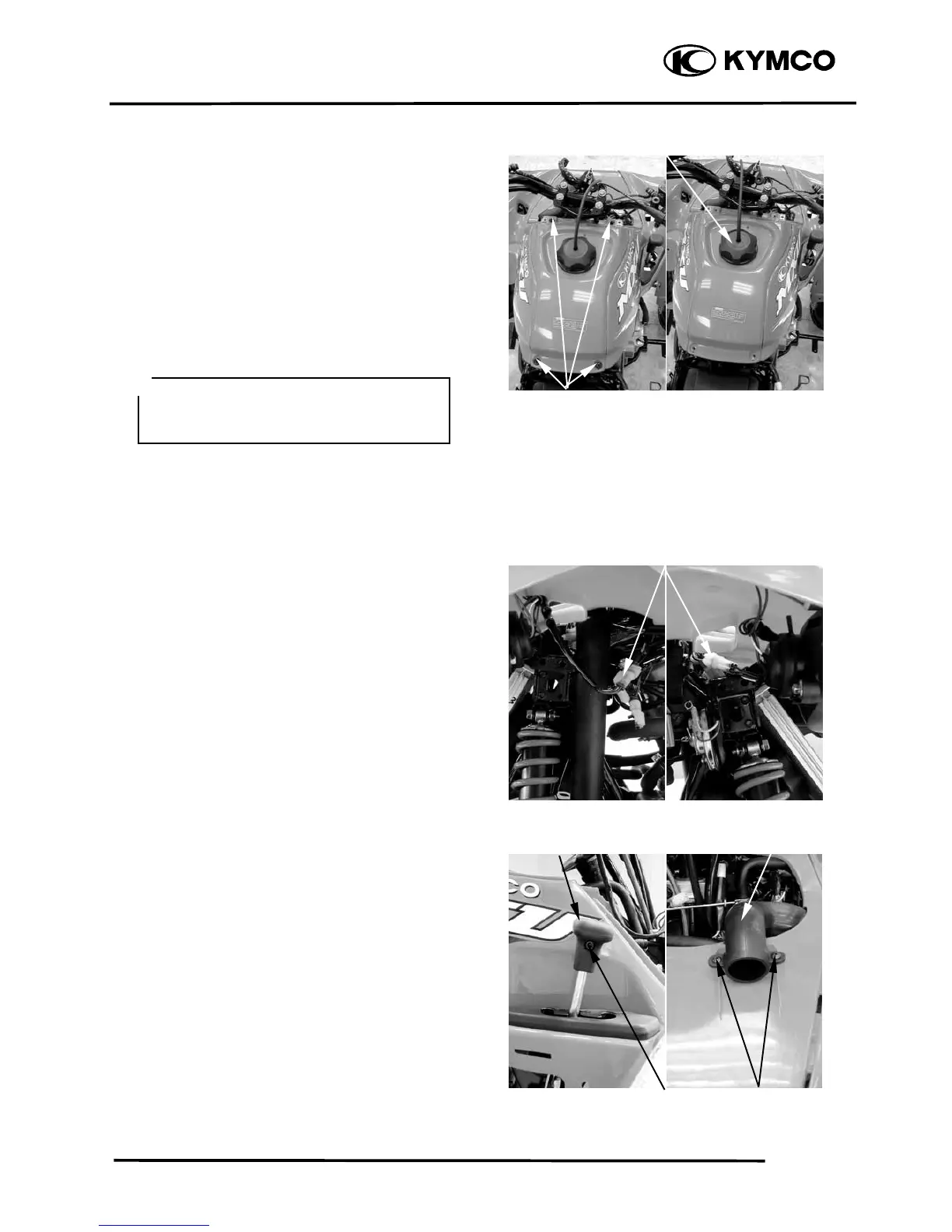

FUEL TANK COVER
REMOVAL/INSTALLATION
Remove the front center cover (see page 2-
7).
Remove the four screws from the fuel tank
cover.
Remove the fuel tank cap by turning it
counterclockwise and fuel tank seal, then
remove the fuel tank cover.
Installation is in the reverse order of
removal.
FRONT FENDER
REMOVAL/INSTALLATION
Remove front carrier (see page 2-4), front
center cover (see page 2-7), fuel tank cover
(see page 2-8) and right/left side cover (see
page 2-6).
Disconnect the right and left headlight
connectors.
Remove the bolt and drive select lever grip.
Remove the two screws and disconnect the
air inlet hose.
Screws
Fuel Tank Cap/Fuel Tank Seal
Headlight Connectors
Bol
Screws
Drive Select Lever Grip
Air Inlet Hose
Put on the fuel tank cap after removing
the cover to prevent duct, mud, etc. from
entering the fuel tank
＊
