5. FUEL SYSTEM
5-12
MXU 300/250

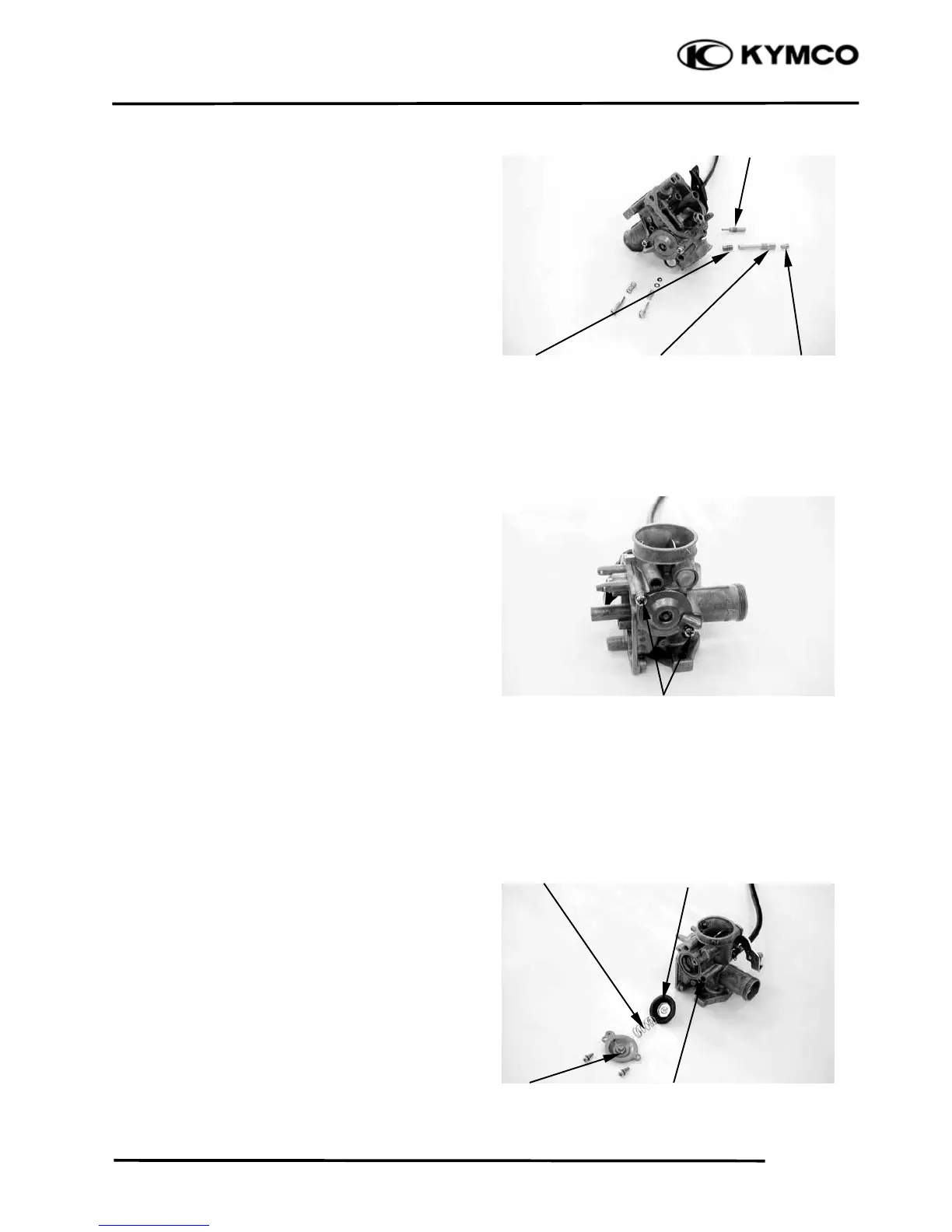

Remove the two screws and the air cut-off
valve cover.
Remove the spring, diaphragm and O-rings.
Inspect the diaphragm and spring for wear or
damage.
Spring
Screws
Dia
p
hra
gm
Slow Je
t
Main Je
t
N
eedle Jet Holde
r
N
eedle Je
t
Cove
r
O-ring
