Kyocera ECOSYS M2030dn

2PK/2PL/2PM/2PN
1-5-14
(2) Detaching and refitting the scanner unit
Procedure
1. Remove the DP (See page 1-5-13).
2. Remove the left cover and right cover
(See page 1-5-3).
3. Remove the FFC and connector from
the control PWB.
4. Remove three connectors from the
scanner PWB.

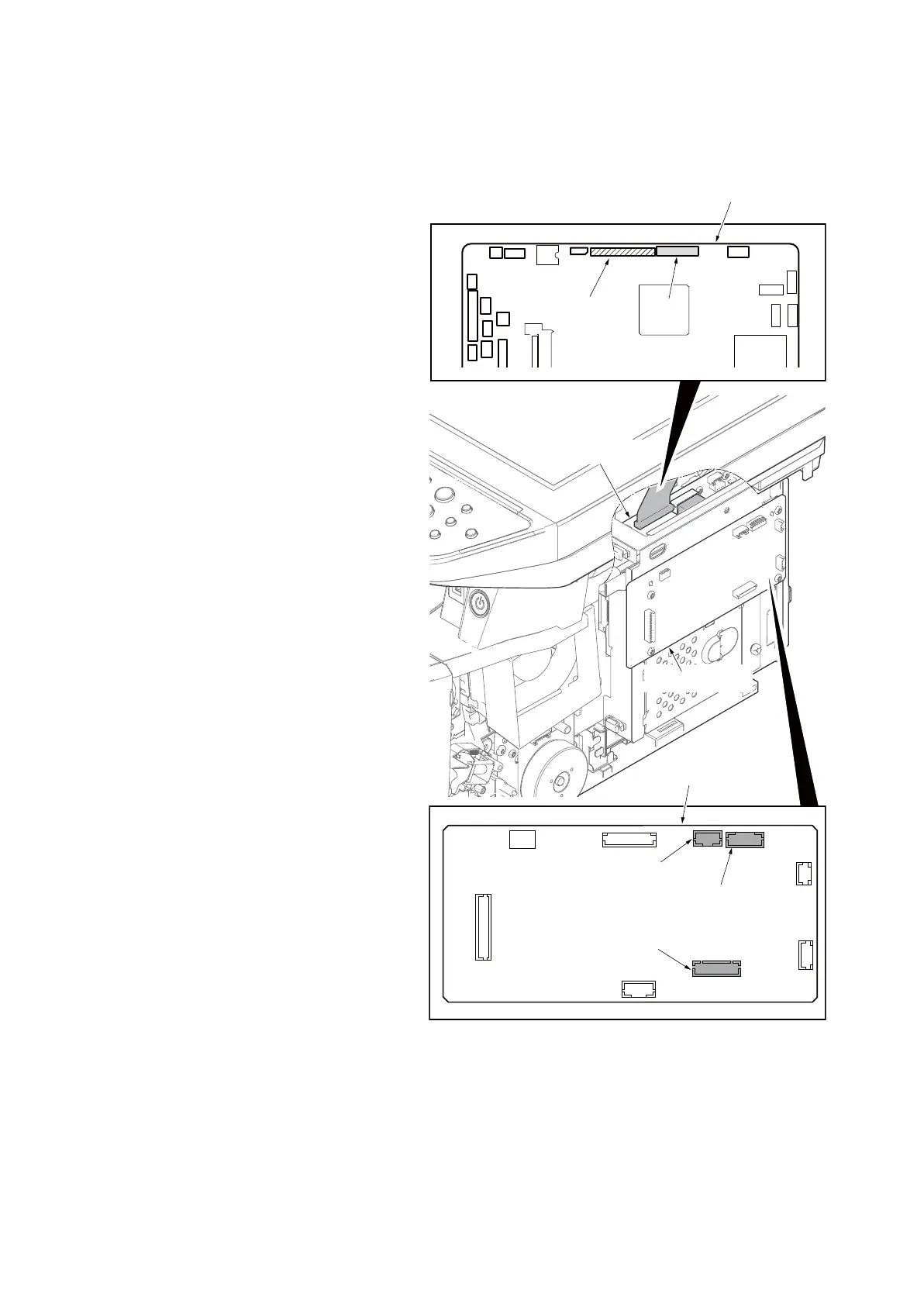

Figure 1-5-17
ConnectorFFC
Scanner PWB
Scanner PWB
Connector
Connector
Connector
YC8
YC7
YC108YC104
YC105
Control PWB
Control PWB
