2PK/2PL/2PM/2PN
1-5-30
1-5-7 Transfer/separation section
(1) Detaching and refitting the transfer roller
Procedure
1. Remove the developer unit (See page
1-5-27).
2. Remove the drum unit (See page 1-5-
28).
3. Slide the paper chute guide and unhook
the hooks.
4. Remove the paper chute guide.

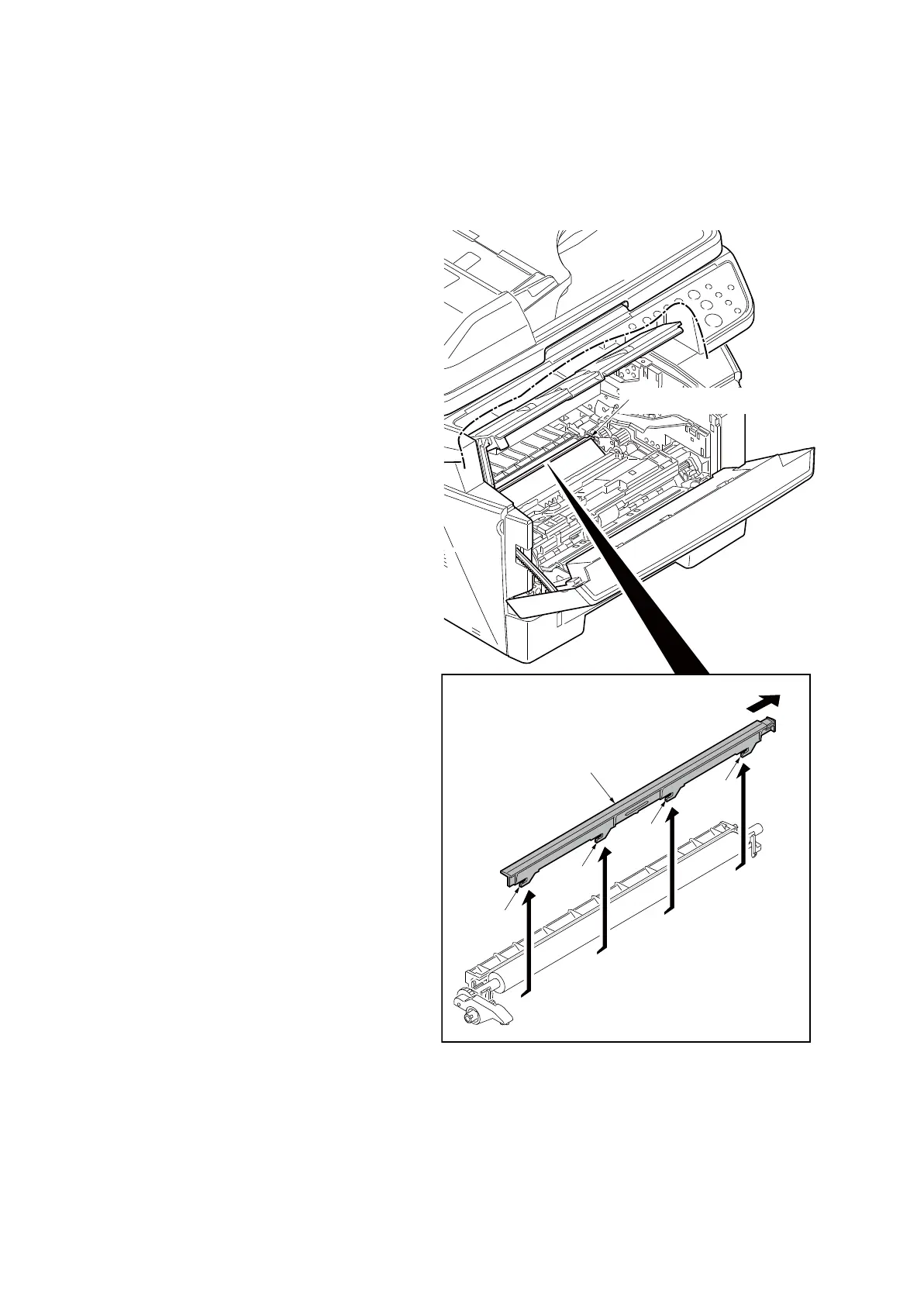

Figure 1-5-44
Paper chute guide
Paper chute guide
Hook
Hook
Hook
Hook
To Next Page
