Kyocera ECOSYS M2030dn

2PK/2PL/2PM/2PN
2-1-21
2-1-10 Document processor
(1) Original feed section
The original feed section consists of the parts shown in figure. An original placed on the original table is con-
veyed to the original conveying section. Original is fed by the rotation of the DP forwarding pulley and DP feed
pulley.

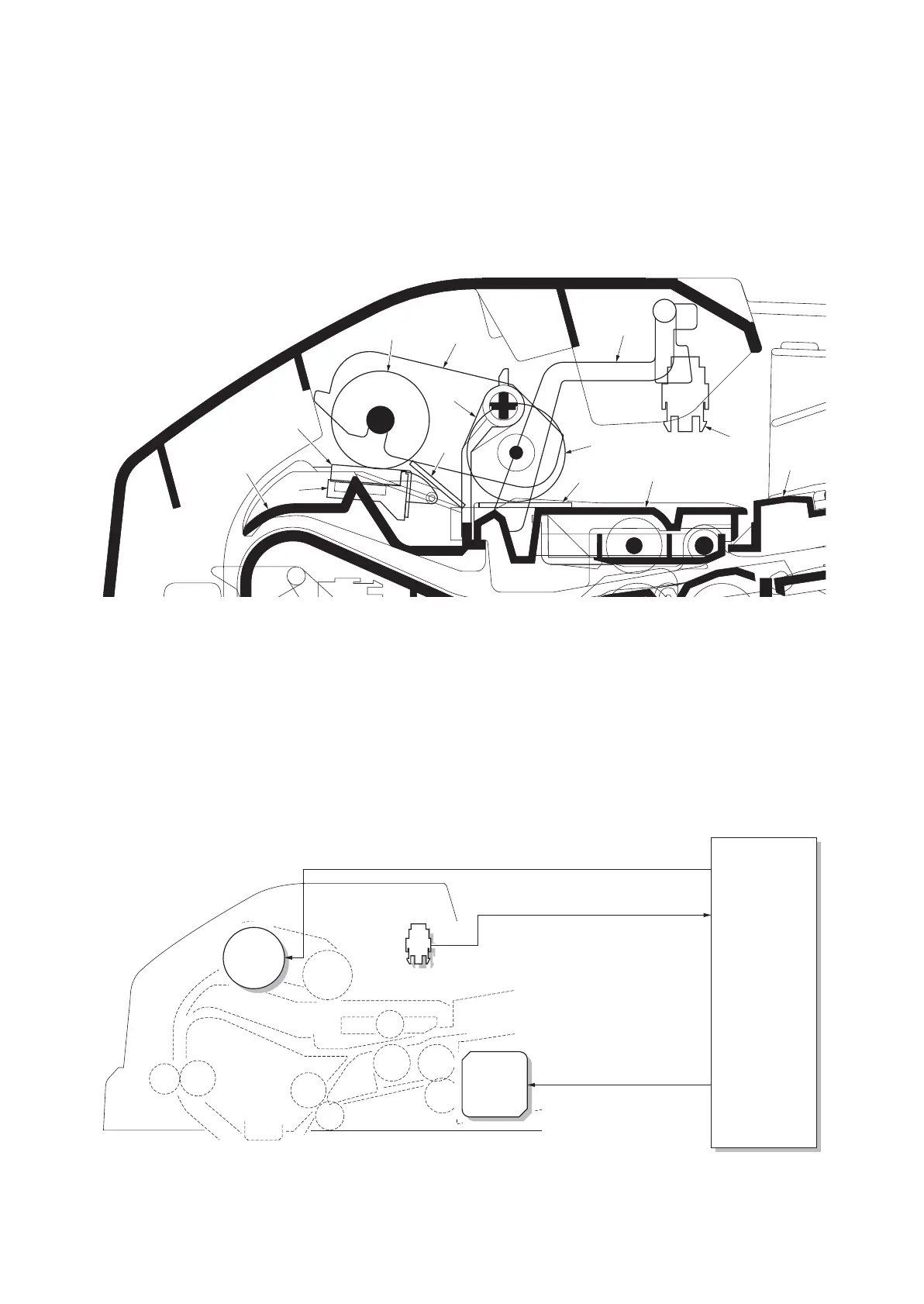

Figure 2-1-27 Original feed section
]
Figure 2-1-28 Original feed section block diagram
1
5
6
7
8
9
10
13
11
12
2
4
3
1. DP forwarding pulley
2. DP feed pulley
3. LF holder
4. PF stopper
5. Front separation pad
6. LF friction plate
7. DP separation pad
8. Separation mount
9. Upper guide
10. Switchback guide
11. DP original sensor (DPOS)
12. Actuator (DP original sensor)
13. Original table
DPDPWB
DPOS
ORGSWN
YC2-6
YC6-2
YC3-1,2,3,4
DPMOT1A, DPMOT2A
DPMOT1B, DPMOT2B
FEEDCL
DP
PFCL
DPPFM
