Kyocera ECOSYS M2030dn

2PK/2PL/2PM/2PN
1-1-9

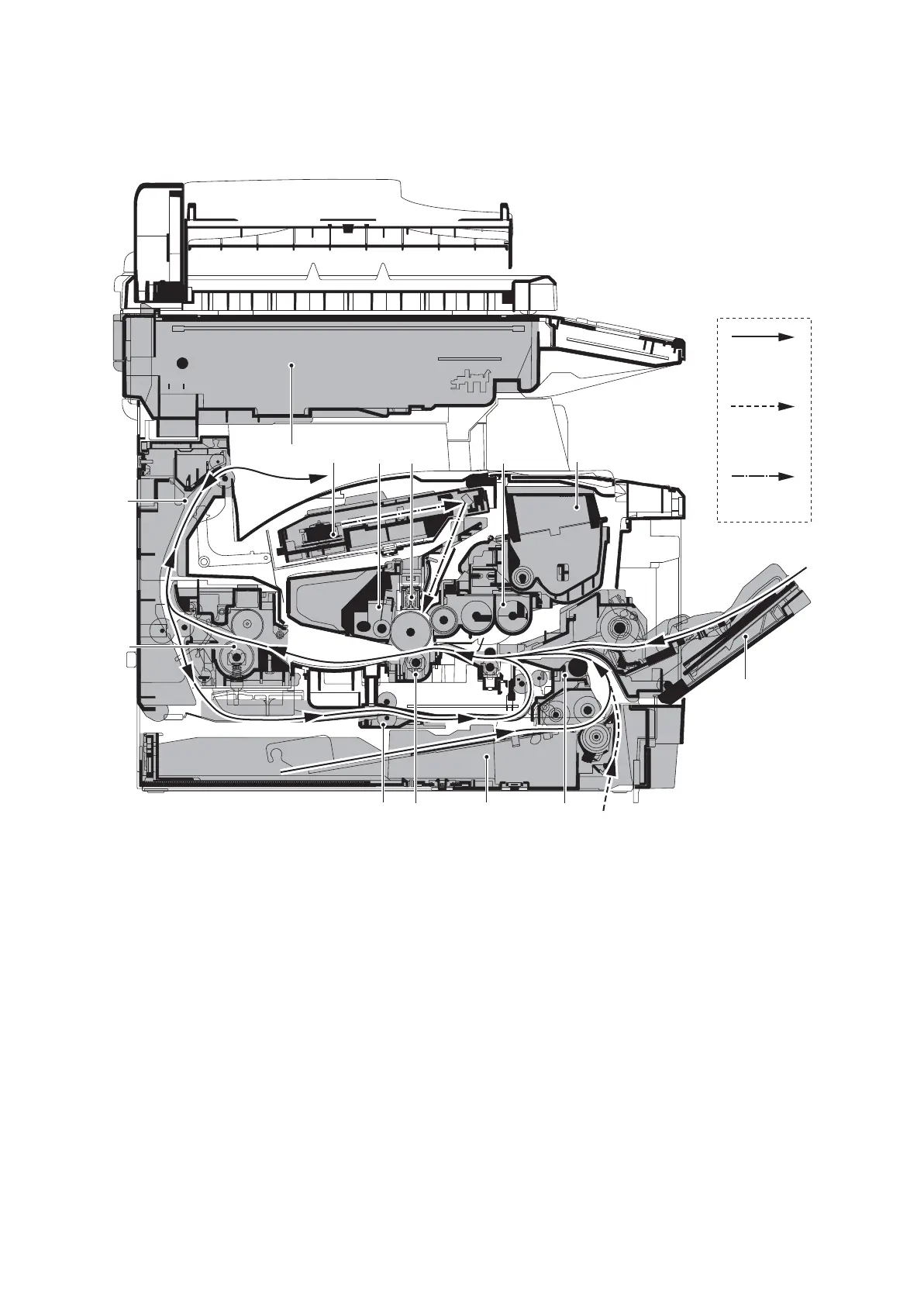

1-1-3 Machine cross section
Figure 1-1-4
13
1912
3
2
45678
10
11
Paper path
Paper path
(option)
Light path
1. Cassette
2. MP tray
3. Paper feed/conveying section
4. Toner container
5. Developer unit
6. Main charger unit
7. Drum unit
8. Laser scanner unit (LSU)
9. Transfer/separation section
10. Fuser section
11. Exit section
12. Duplex/conveying section
13. Scanner section
