(1) Detaching and refitting the control PWB
Procedure
1. Remove the FAX control PWB.
(See page 1-5-48)
2. Remove the right cover.
(See page 1-5-3)
3. Remove the five connectors from the
scanner PWB.
4. Remove twenty connectors and two
FFCs from the control PWB.
5. Remove the wires from the clamp.

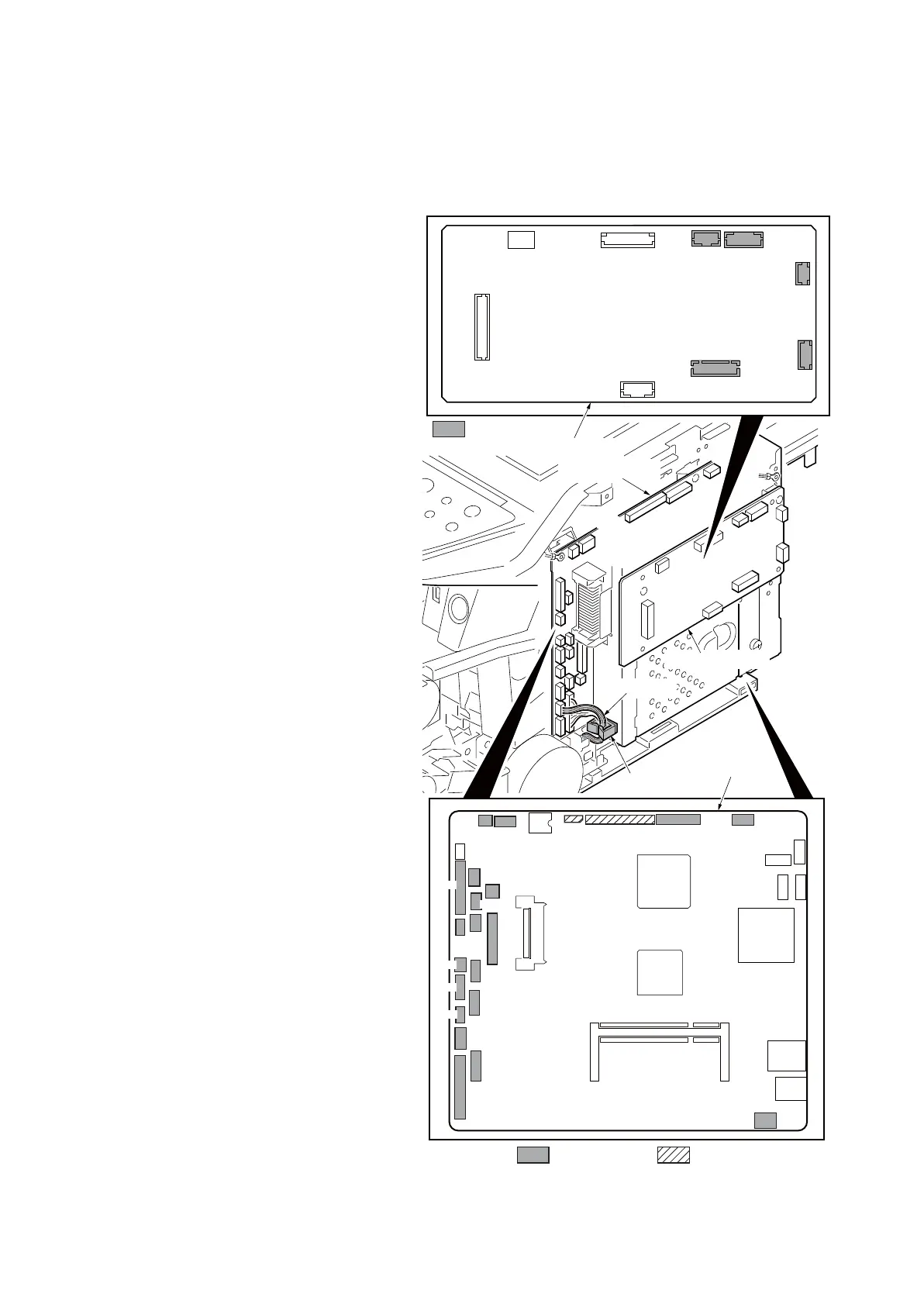

Figure 1-5-55
YC28
YC32
YC24
YC12
YC27
YC18
YC26
YC2013
YC9
YC13
YC17
YC25
YC30
YC23
YC19
YC2010
YC2004
YC2000
YC2006
YC2007
YC2005
YC2014
YC3
YC7
YC8
(FFC)
YC6
(FFC)
U17
YC29
1
8
11 1 2
YC27
YC16
YC20
YC21
YC10
YS2000
Scanner PWB
Wires
Clamp
YC101
YC109
YC108
YC104
YC105
Connectors
FFCs
Connectors
Control PWB
Scanner PWB
Control PWB
