2PK/2PL/2PM/2PN
1-5-38
6. Remove five screws and the grounding
terminal and then remove the control
box.

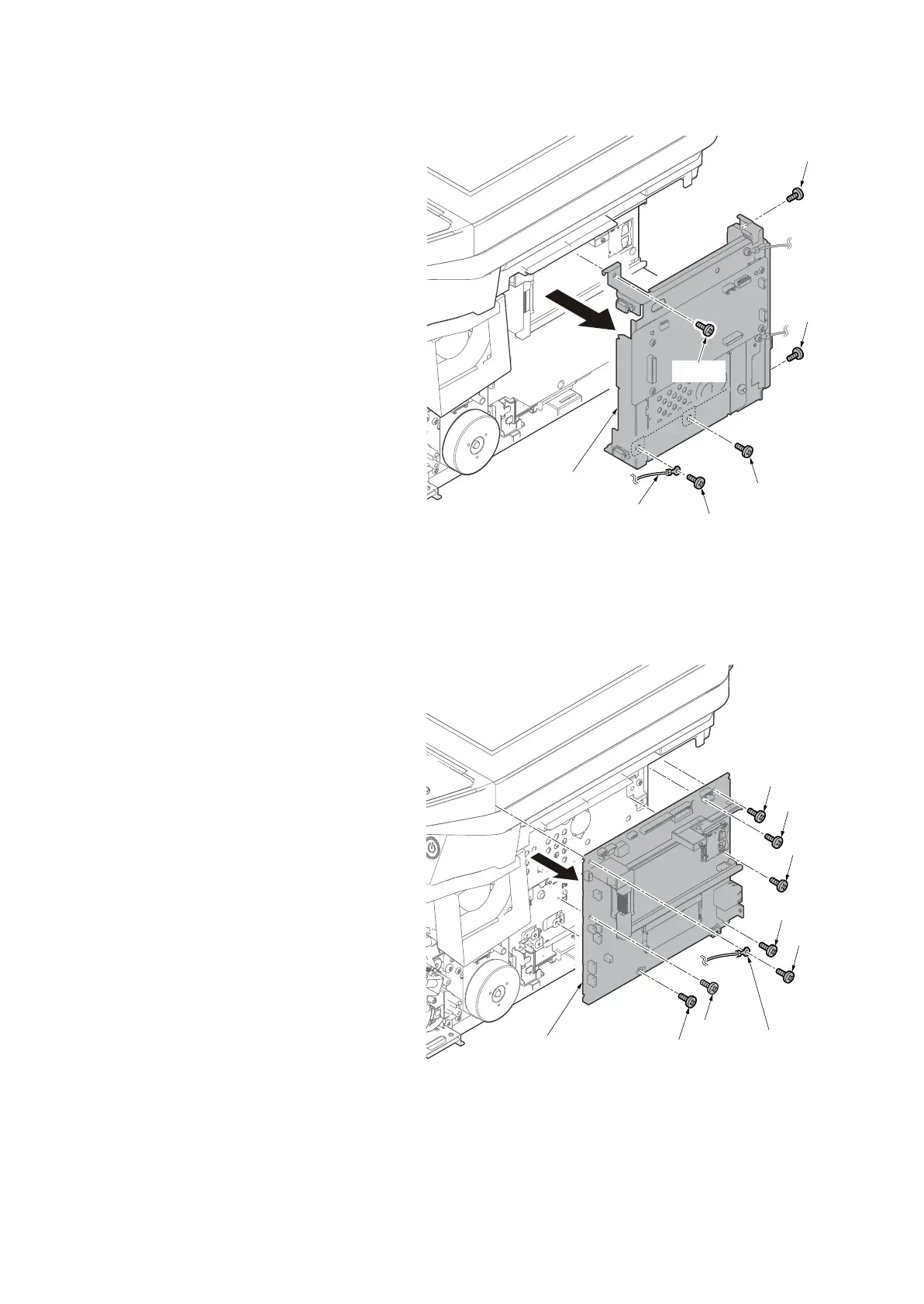

Figure 1-5-56
7. Remove seven screws and the
grounding terminal and then remove
the control PWB.
Figure 1-5-57
Control box
Grounding
terminal
Screw
Screw
Screw
Screw
Screw
Control PWB
Screw
Screw
Screw
Screw
Screw
Screw
Grounding
terminal
Screw
