Kyocera ECOSYS M2030dn Servlce Manual

2PK/2PL/2PM/2PN
2-2-3
(2) Switches and sensors

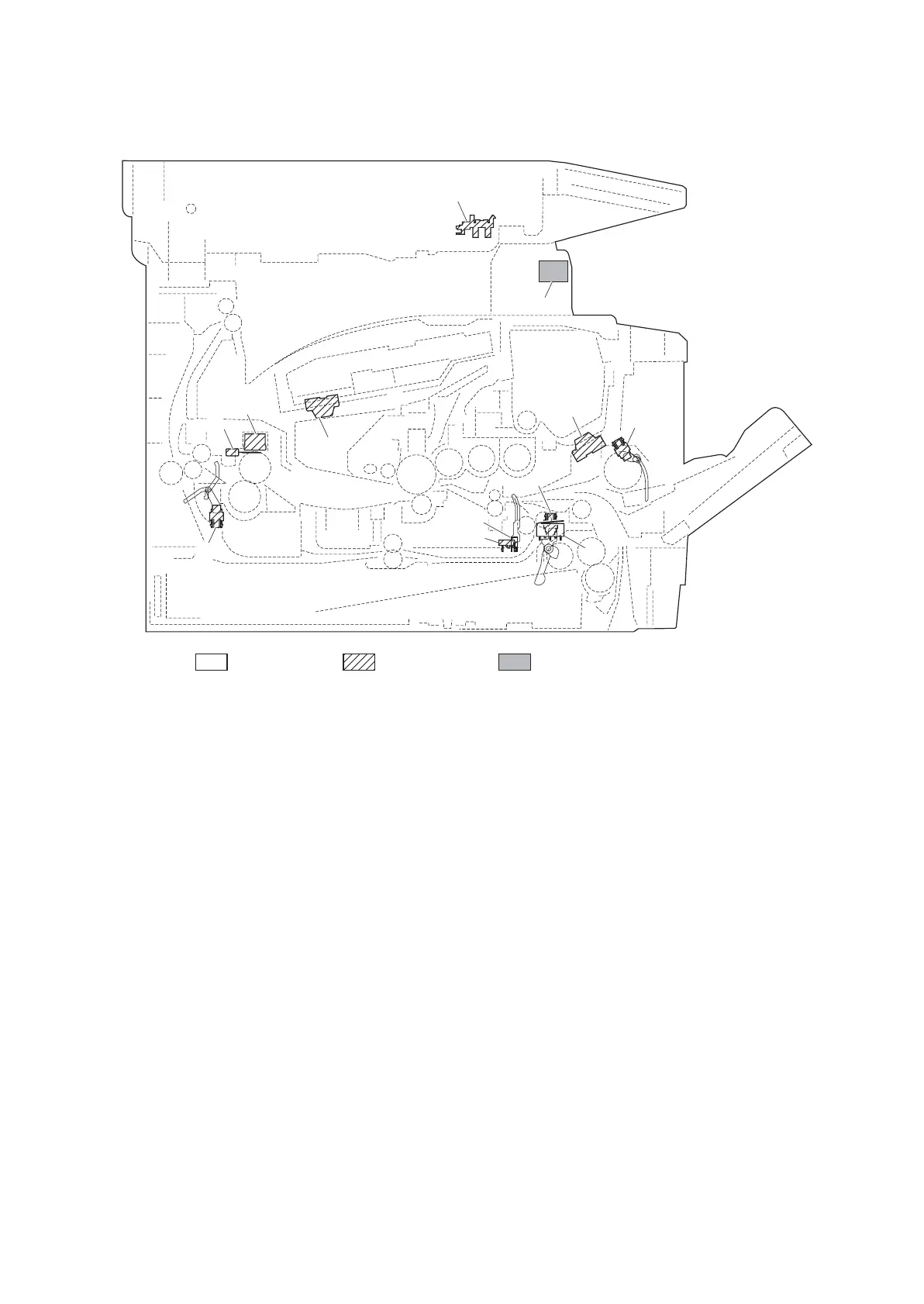

Figure 2-2-2 Switches and sensors
1. Power switch (MSW)............................. Switches of main body operation.
2. Interlock switch (ILSW) ......................... Shuts off 24 V DC power line when the front cover is opened.
3. Cassette switch (COCSW).................... Detects open/close cassette.
4. Registration sensor (RS)....................... Detects the timing of primary paper feed.
5. Paper sensor (PS) ................................ Detects the presence of paper in the cassette.
6. MP paper sensor (MPPS) ..................... Detects the presence of paper on the MP tray.
7. Exit sensor (ES) .................................... Detects paper jam in the fuser or duplex conveying section.
8. Home position sensor (HPS) ................ Detects the ISU in the home position.
9. Toner sensor (TS) ................................. Detects the quantity of toner in a toner container.
10. Waste toner sensor (WTS).................... Detects when the waste toner reservoir (Drum unit) is full.
11. Fuser thermistor (FTH) ......................... Measures the heat roller temperature.
12. Fuser thermostat (FTS)......................... Shuts off the power source to the Fuser heater when the heat
roller reaches extremely high temperature.
Machine insideMachine left Machine right
1
2
6
8
3
4
5
7
9
12
10
11

Kyocera ECOSYS M2030dn Specifications

General

Secure printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	6.9 s
Scan to	E-mail, FTP, SMB, USB
Scan drivers	TWAIN, WIA
Scanner type	ADF scanner
Grayscale levels	256
Maximum scan area	Legal (216 x 356) mm
Scan speed (black)	35 ppm
Scan speed (color)	14 ppm
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Faxing	No
Digital sender	-
Printing colors	Black
Maximum duty cycle	20000 pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	28.3 dB
Sound pressure level (copying)	50.4 dB
Sound pressure level (quiet mode)	49 dB
Paper input type	Cassette, Paper tray
Total input capacity	300 sheets
Total output capacity	- sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Maximum number of input trays	4
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Auto Document Feeder (ADF) media weight	50 - 120 g/m²
Display	LCD
Product color	Black, White
Market positioning	Business
Display number of lines	5 lines
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	62 W
Power consumption (PowerSave)	3.7 W
Power consumption (average operating)	431 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Certification	TÜV/GS, CE
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	430 mm
Width	494 mm
Height	448 mm
