Kyocera ECOSYS M2030dn

2PK/2PL/2PM/2PN
1-5-48
(5) Detaching and refitting the FAX control PWB
Procedure
1. Open the rear cover.
2. Unhook the hook and then remove the
controller box cover.

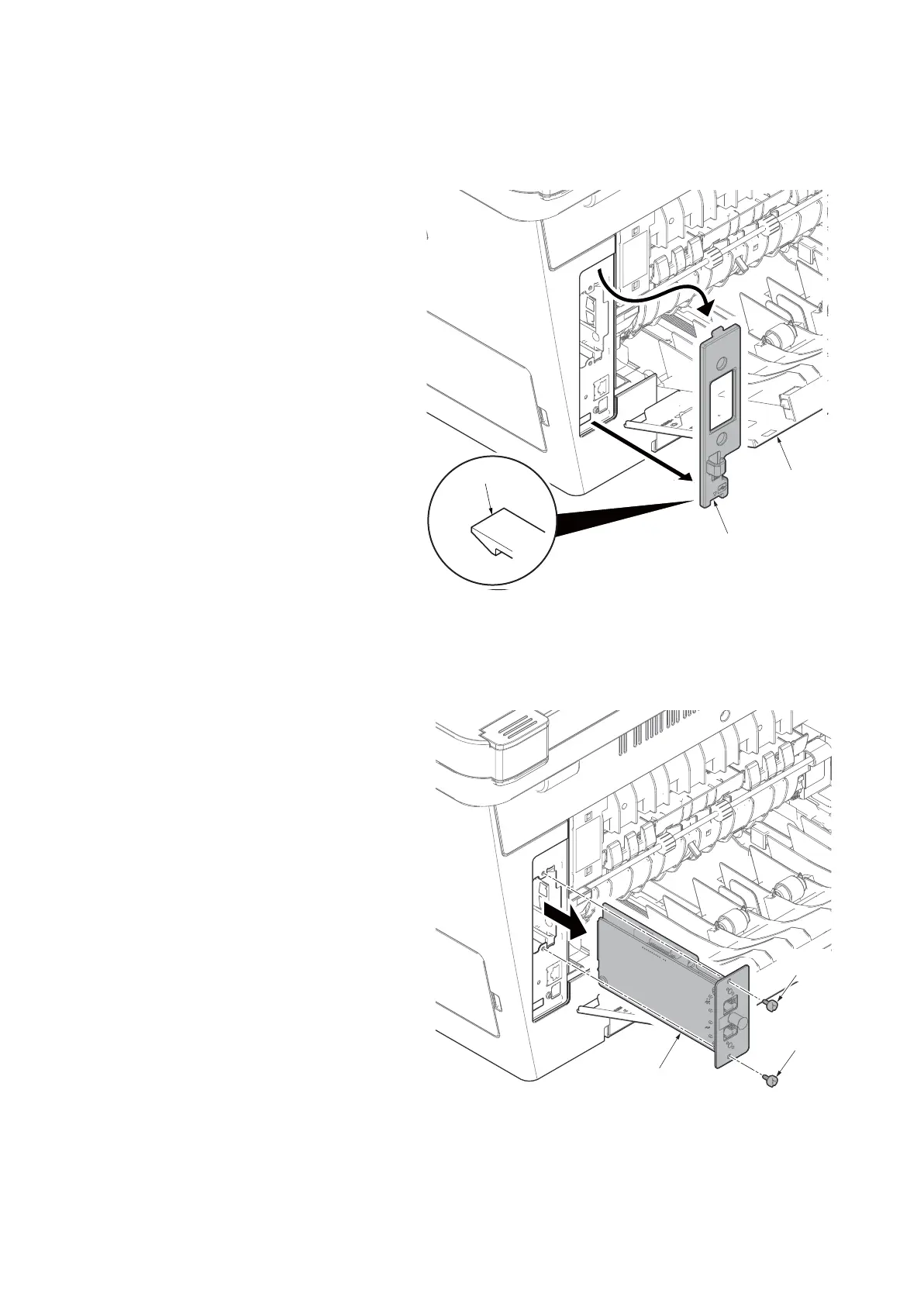

Figure 1-5-72
3. Remove two screws and then remove
the FAX control PWB.
4. Check or replace the FAX control PWB
and refit all the removed parts.
Figure 1-5-73
Controller box cover
Hook
Rear cover
Controller box cover
Hook
Rear cover
FAX control PWB
Screw
Screw
