U071 Adjustment: Leading edge registration
1. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the value moves the image forward and decreasing the value moves the image
backward.

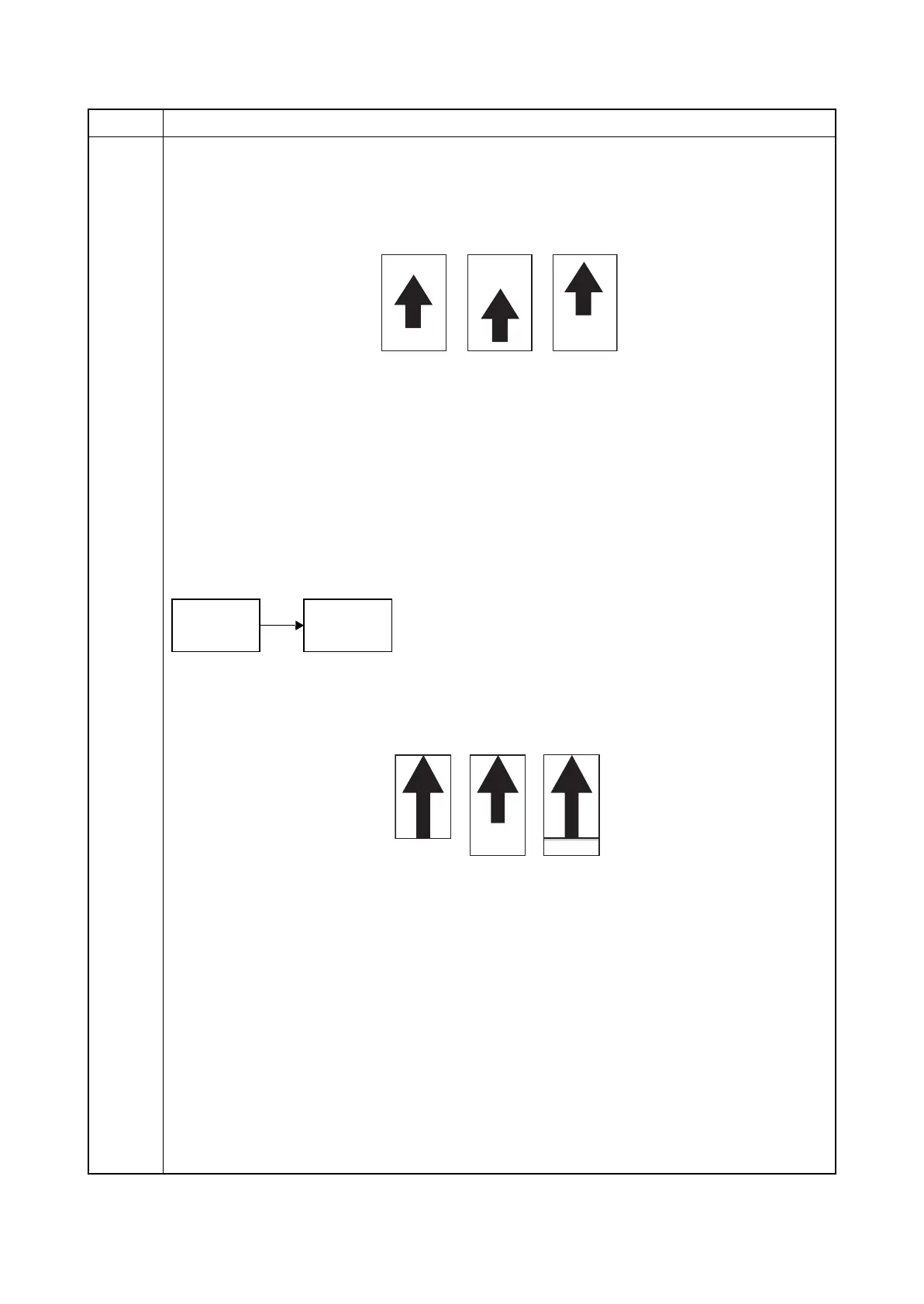

Figure 1-3-9
2. Press the start key. The value is set.
Caution
If the first side is adjusted, check the second side and if adjustment is required, carry out the
adjustment.
If the above adjustment does not optimize the leading edge registration, proceed with the follow-
ing maintenance modes.
Adjustment: Trailing edge registration
1. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Figure 1-3-10
2. Press the start key. The value is set.
Caution
If the first side is adjusted, check the second side and if adjustment is required, carry out the
adjustment.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Original Copy
example 1
Copy
example 2
U034
(P.1-3-17)
U071
Original
Copy
example 1
Copy
example 2
