Troubleshooting > Clearing Paper Jams

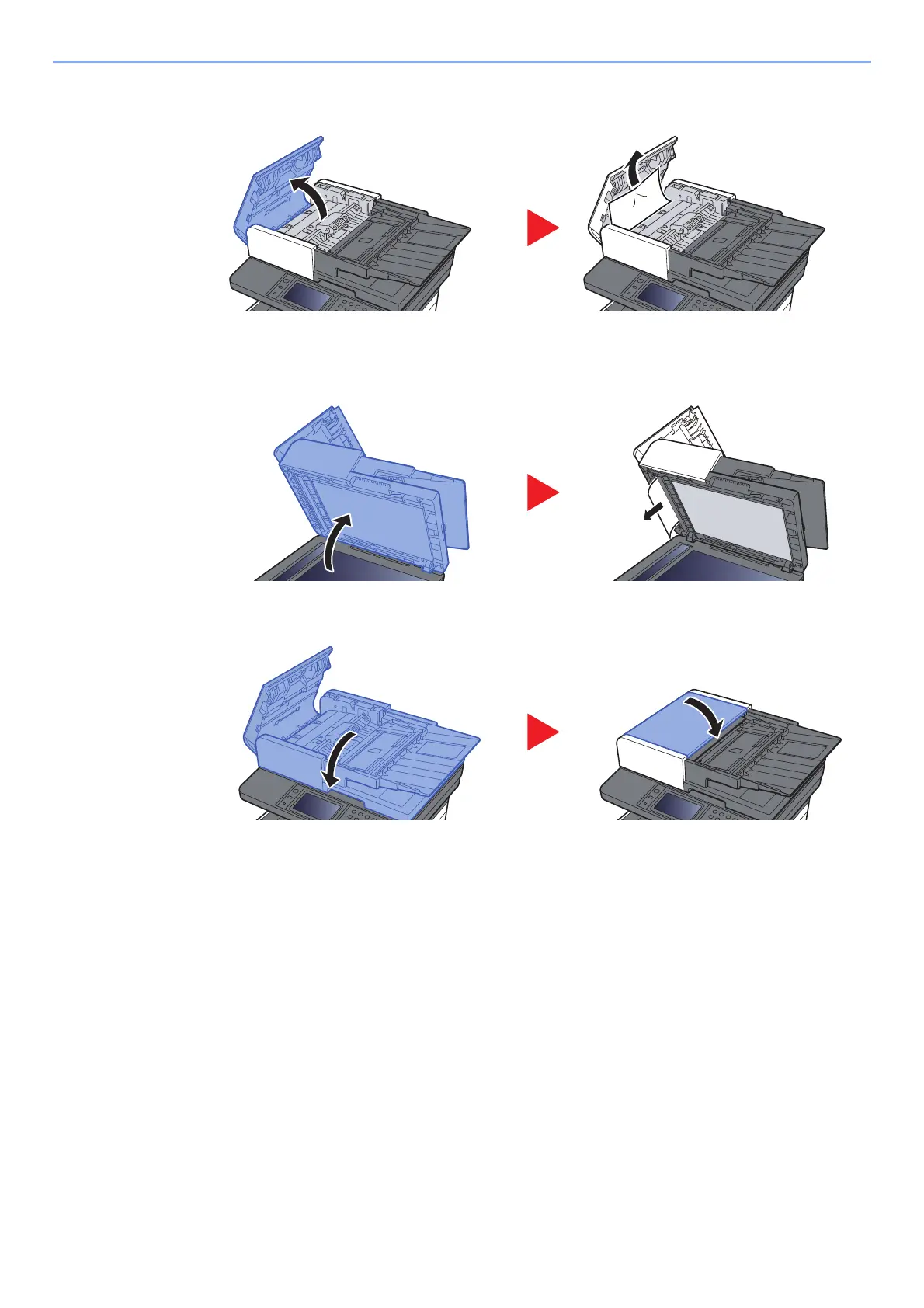

Open the front cover and remove any jammed paper.

Remove originals inside the document processor.

Push the cover.
