Troubleshooting > Regular Maintenance

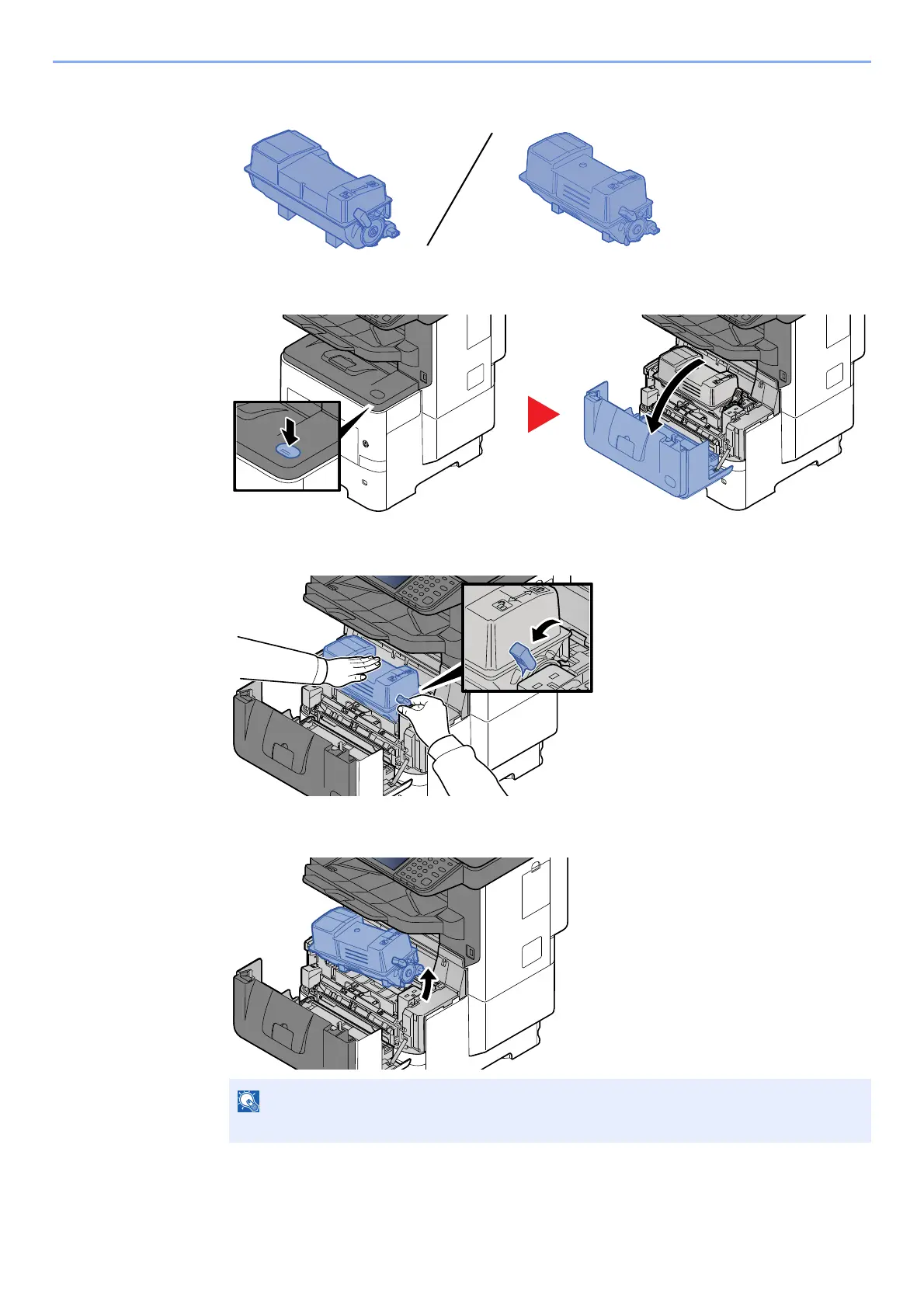

Replacing the Toner Container

NOTE

When removing the toner container from the machine, lift up the right hand side first.
