(6) Detaching and refitting the left upper cover
Procedure
1. Release the hook A by sliding the left
upper cover upward.
2. Release the hook B and hook C while
twisting the edge of the left upper cover
and then remove it and the waste toner
box cover together.

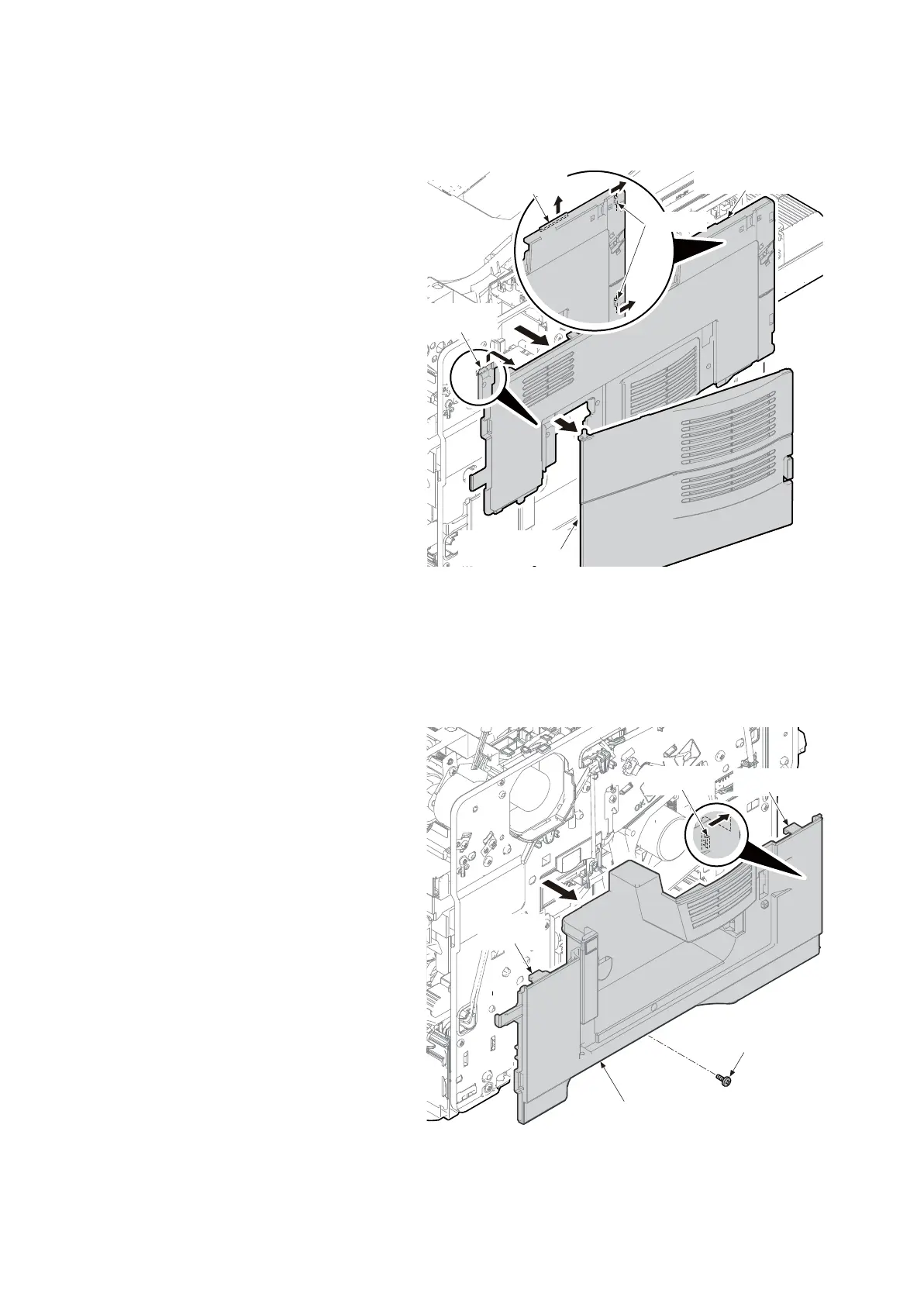

Figure 1-5-11
(7) Detaching and refitting the left lower cover
Procedure
1. Remove the screw.
2. Release the hook A while twisting the
edge of the left lower cover.
3. Release two hooks B by sliding the left
lower cover upward and then remove it.
Figure 1-5-12
Left upper cover
Hook A
Waste toner
box cover
Hooks B
Hook C
Screw
Hook B
Hook B
Left lower cover
Hook A
