Kyocera ECOSYS P4040dn

2P7/2R0/3PN
1-5-17
1-5-5 Drum section
(1) Detaching and refitting the drum unit
Procedure

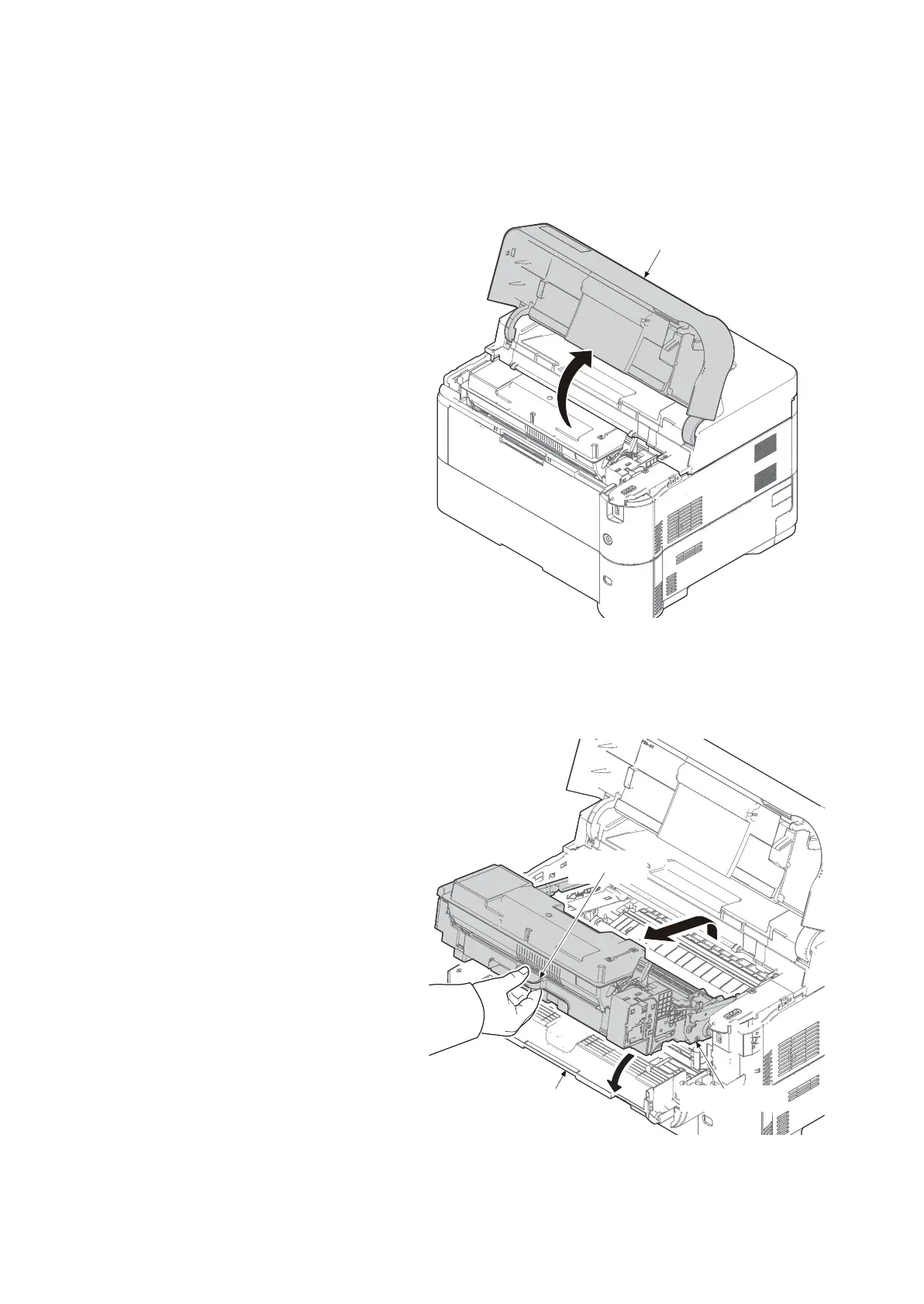

1. Open the top cover.
Figure 1-5-29
2. Open the front cover.
3. Grip the knob and then Pull the imaging
unit forward.
Figure 1-5-30
Top cover
Imaging unit
Front cover
Knob
