(5) Detaching and refitting the rear fan motor
Procedure
1. Pull out the cassette.

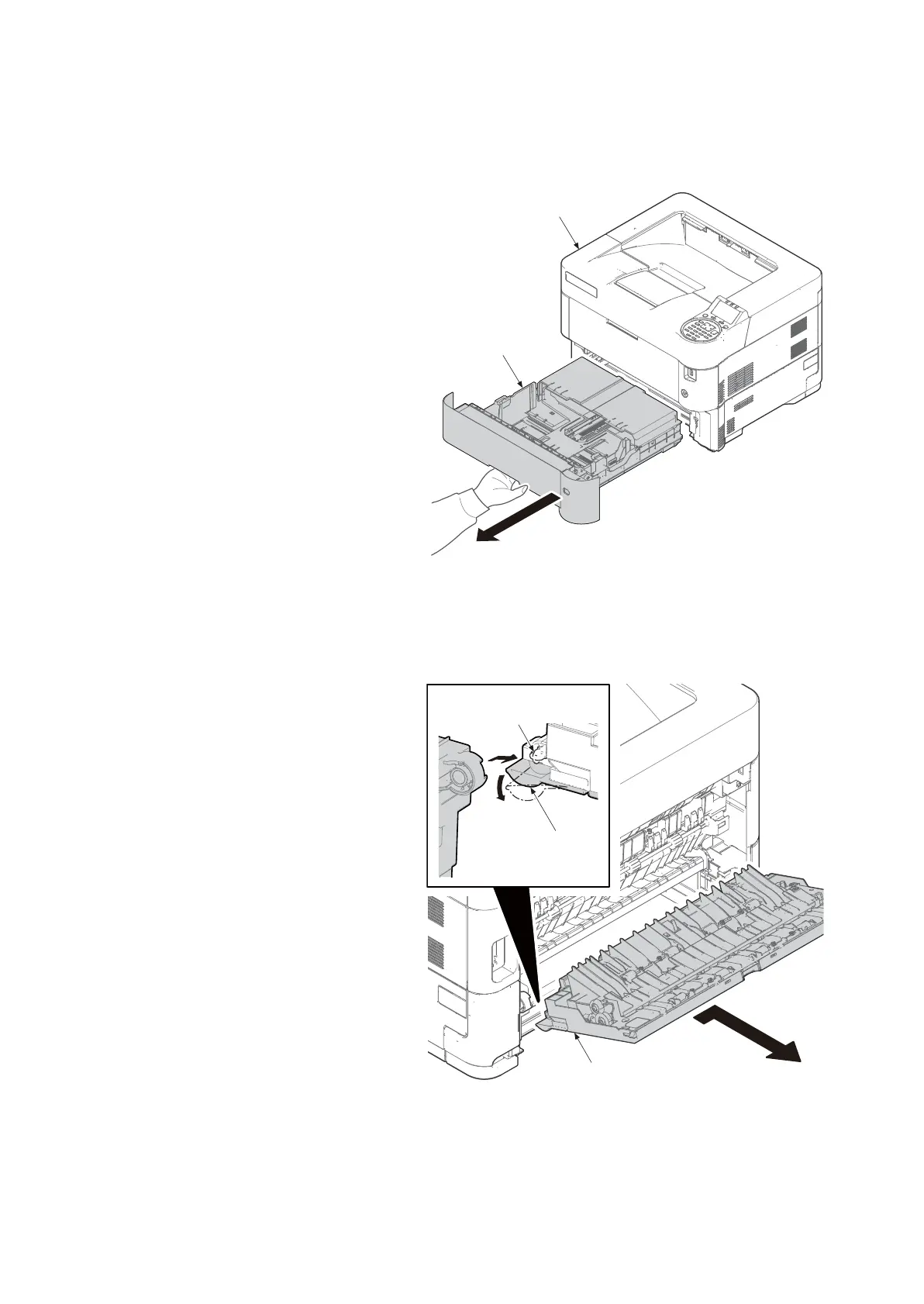

Figure 1-5-152
2. Remove the fulcrum axis by sliding the
rear cover assembly while avoiding rear
cover and then remove the rear cover
assembly.
Figure 1-5-153
Cassette
Printer
Rear cover assembly
Fulcrum axis
(Rear cover assembly)
Rear cover
