2P7/2R0/3PN

1-5-62

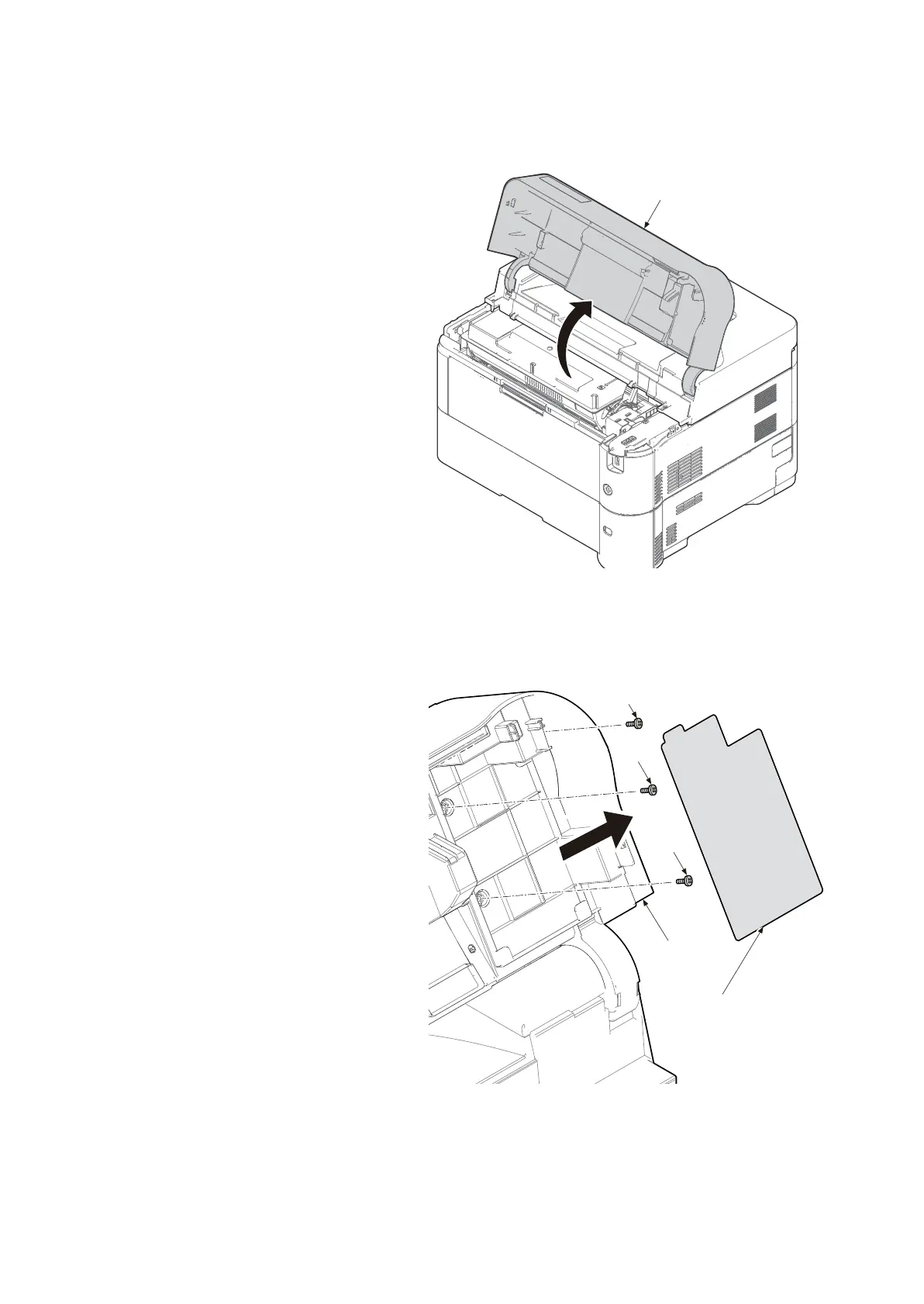

(6) Detaching and refitting the operation PWB

Procedure

1. Open the top cover.

Figure 1-5-114

2. Remove the JAM processing procedure

sheet..

3. Remove three screws.

Figure 1-5-115

Top cover

JAM processing

procedure sheet

Screw

Top cover

Screw

Screw
