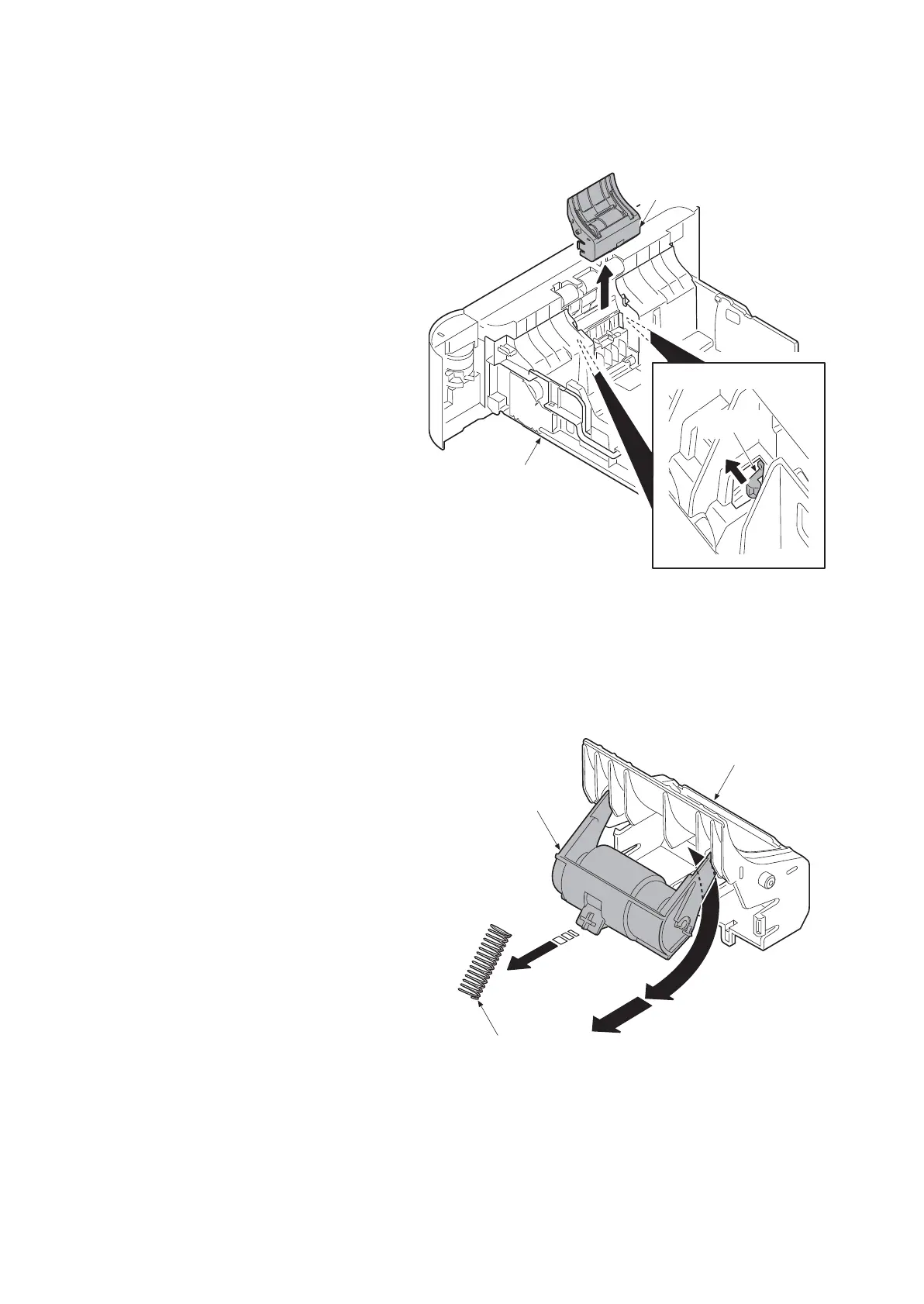

(2) Detaching and refitting the retard roller
Procedure
1. Remove the cassette from the paper
feeder.
2. Release two hooks in backside of cas-
sette and then remove the retard roller
assembly.
Figure 1-5-158
3. Remove the spring.
4. Remove the retard holder by rotating.
5. Check or replace the retard roller and
refit all the removed parts.
Figure 1-5-159
Retard roller assembly
Hook
Cassette backside
Cassette
Retard roller guide
Spring
Retard roller holder
