Kyocera ECOSYS P4040dn

2P7/2R0/3PN
1-5-27
1-5-8 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Pull out the cassette.

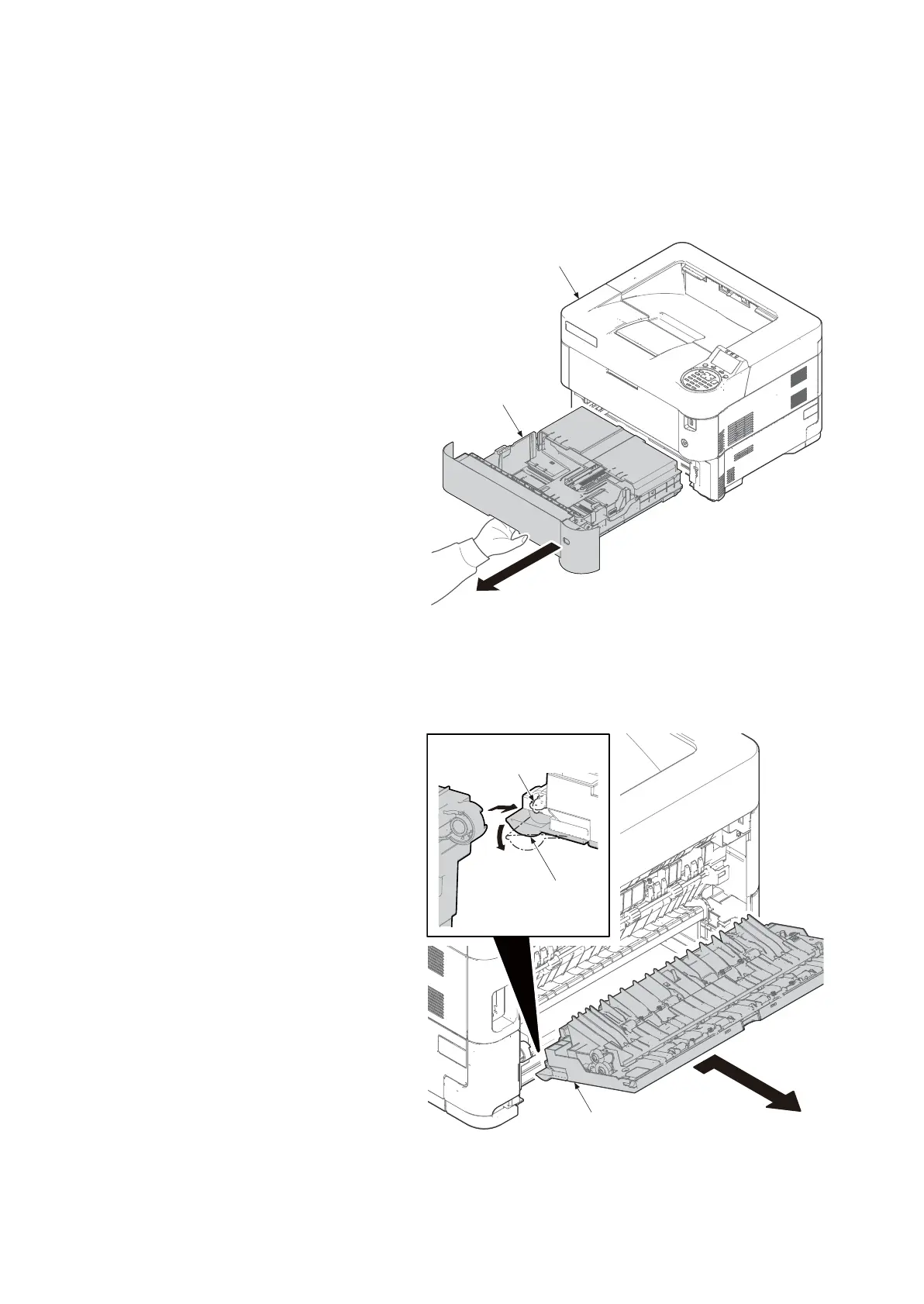

Figure 1-5-48
2. Remove the fulcrum axis by sliding the
rear cover assembly while avoiding rear
cover and then remove the rear cover
assembly.
Figure 1-5-49
Cassette
Printer
Rear cover assembly
Fulcrum axis
(Rear cover assembly)
Rear cover
