2P7/2R0/3PN
1-5-9
1-5-3 Paper feed section
(1) Detaching and refitting the paper feed roller
Procedure
1. Pull out the cassette.

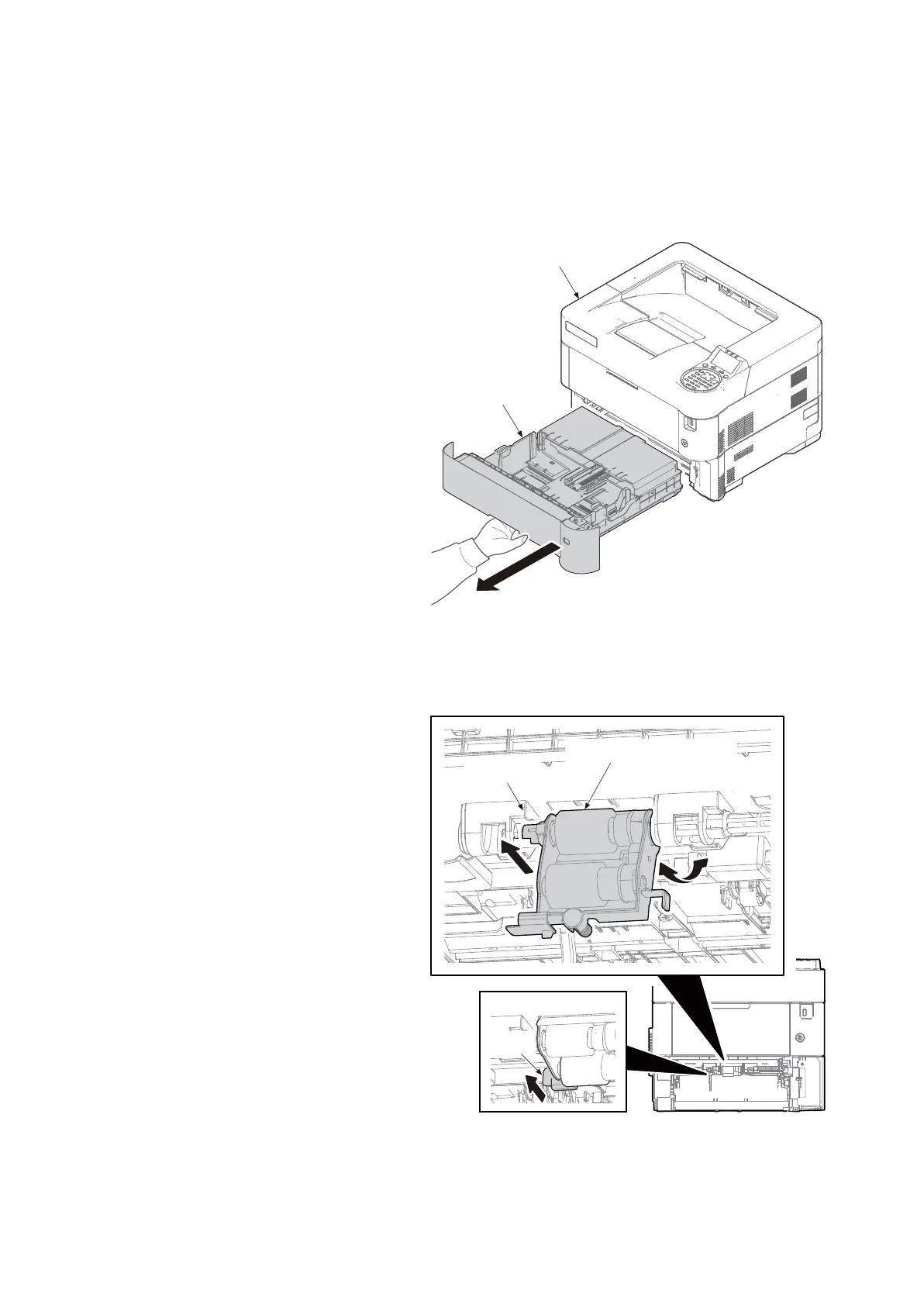

Figure 1-5-15
2. Release the lock by pulling the lever.
3. Remove the paper feed roller assembly
by pulling and raising and then sliding
forward.
4. Check or replace the paper feed roller
and refit all the removed parts.
Figure 1-5-16
Cassette
Printer
Paper feeder assembly
Lever
Holder
