2P7/2R0/3PN
1-5-86
1-5-12 PF-4100
(1) Detaching and refitting the paper feed roller and the pickup roller
Procedure
1. Remove the cassette from the paper
feeder.
2. Slide the roller holder while pressing the
lock lever.
3. Remove the paper feed roller assembly.
4. Check or replace the paper feed roller
or the pickup roller and refit all the
removed parts.

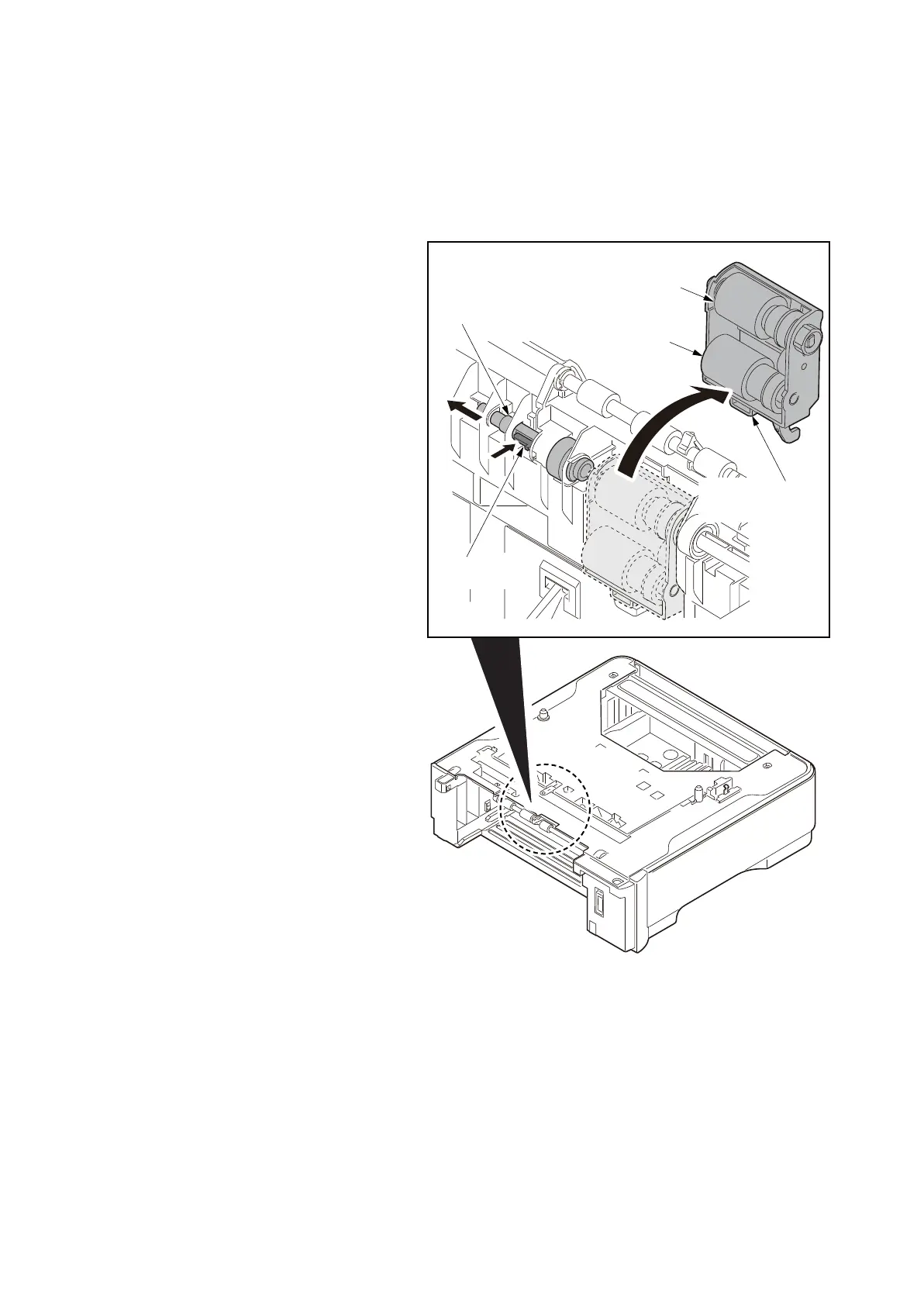

Figure 1-5-157
Lock lever
Pickup roller
Paper feed roller
Roller holder
Paper feed roller
assembly
To Next Page
