Kyocera ECOSYS P4040dn

2P7/2R0/3PN
1-5-54
(5) Detaching and refitting the high voltage PWB
Procedure

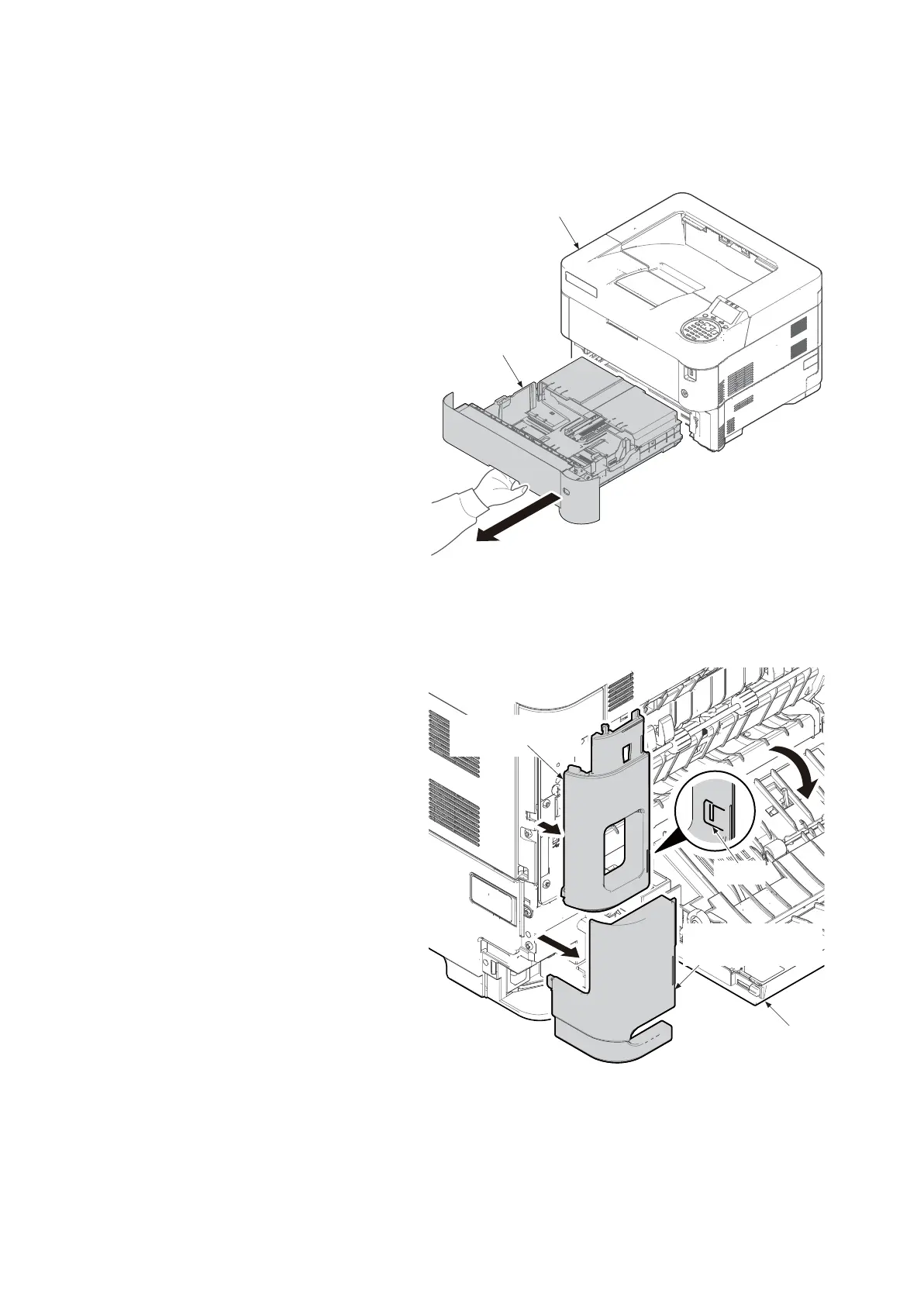

1. Pull out the cassette.
Figure 1-5-99
2. Remove the power cord cover by slid-
ing it.
3. Release the hook of the interface cover
and then remove during twisting it.
Figure 1-5-100
Cassette
Printer
Interface cover
Power cord
connector cover
Rear cover
Hook
