17. Remove two connectors.
18. Remove the screw and two hooks and
then remove the wire guide.

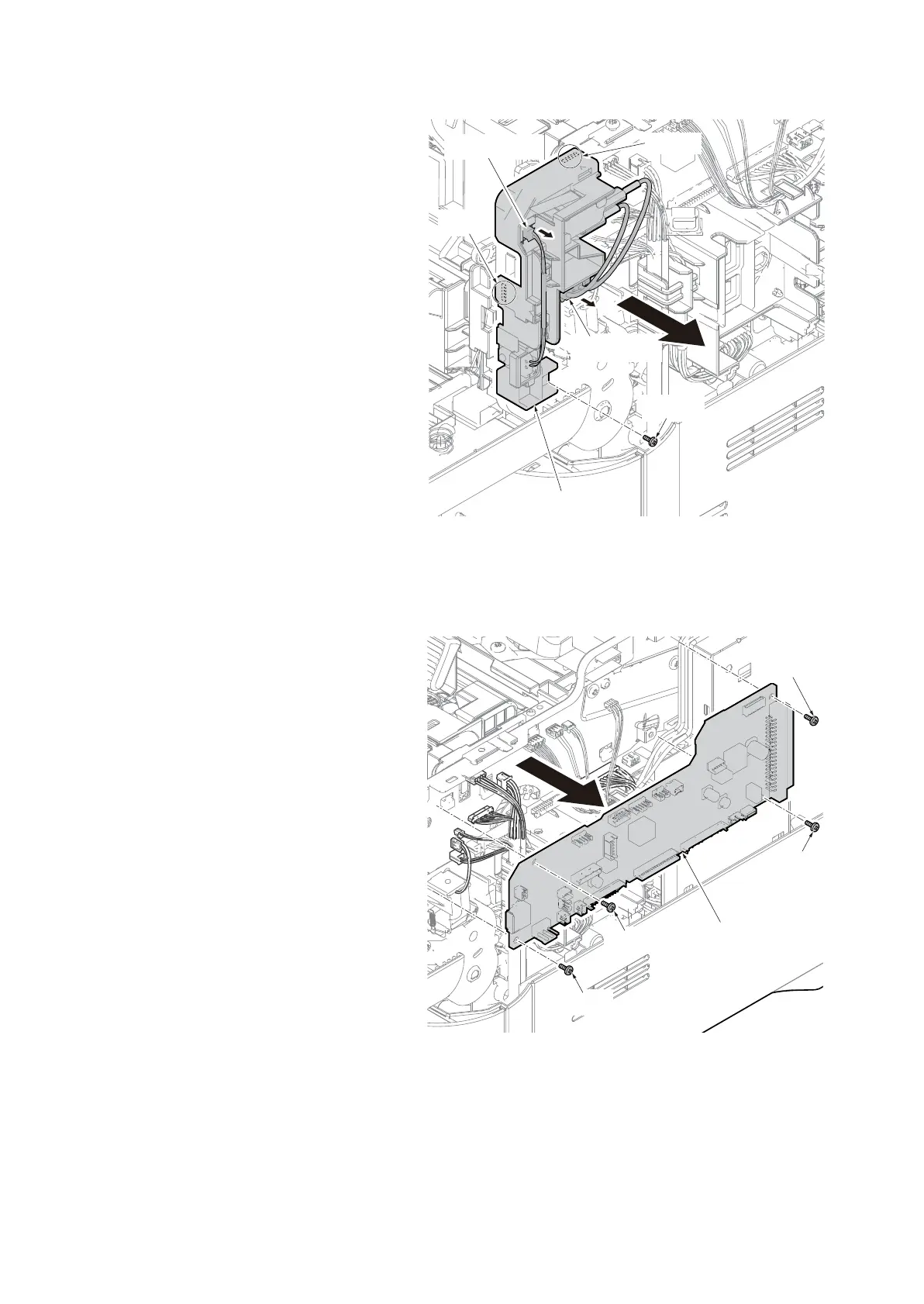

Figure 1-5-79
19. Remove all connectors from the engine
PWB.
20. Remove four screws and then remove
the engine PWB.
21. Check or replace the engine PWB and
refit all the removed parts.
Figure 1-5-80
Hook
Connector
Connector
Wire guide
Hook
Screw
Engine PWB
Screw
Screw
Screw
Screw
