Installing and Setting up the Machine > Part Names (With Optional Equipments Attached)

Part Names (With Optional Equipments

Attached)

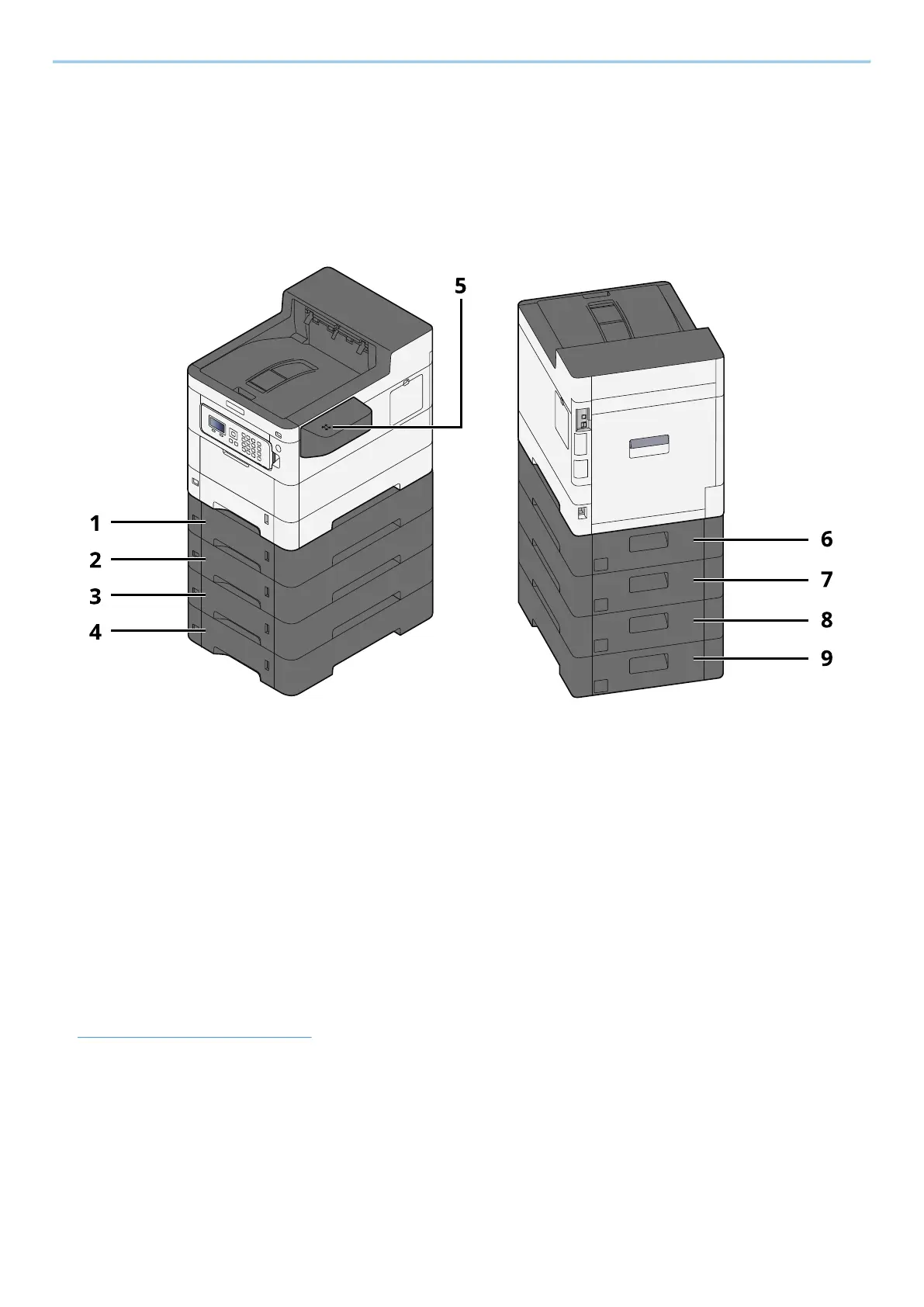

ECOSYS PA4500cx

1 Cassette 2

2 Cassette 3

3 Cassette 4

4 Cassette 5

5 Card reader

6 Rear cover 2

7 Rear cover 3

8 Rear cover 4

9 Rear cover 5

For details of options, refer to the following:

➡ Option configuration (page 377)
