Installing and Setting up the Machine > Part Names (Machine Exterior)

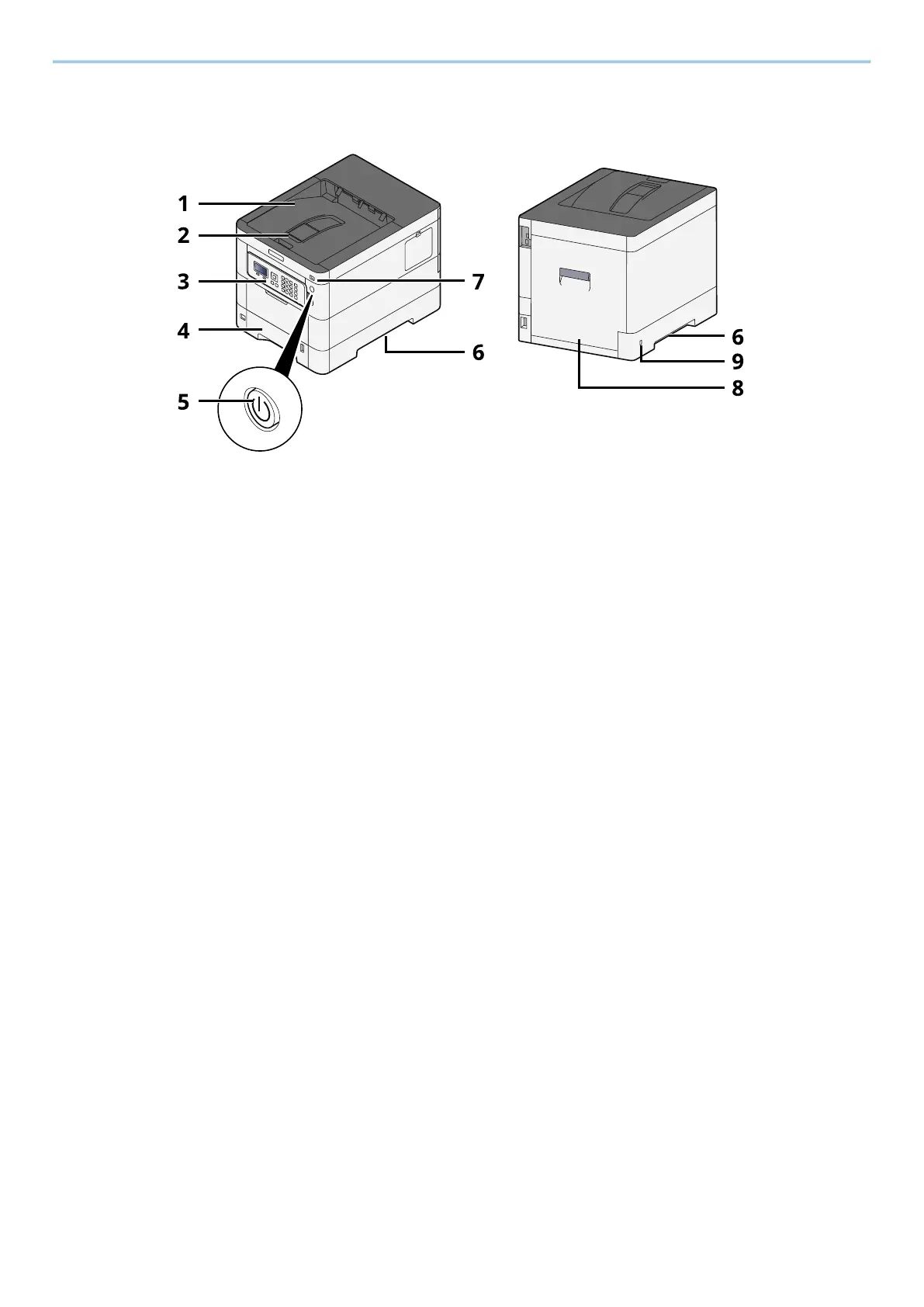

ECOSYS PA3500cx

1 Upper tray

2 Eject stopper

3 Operation panel

4 Cassette 1

5 Power Switch

6 Conveying handle

7 USB Memory slot

8 Rear cover 1

9 Anti-theft slot
