Kyocera FS-1120D User Guide

4 Basic

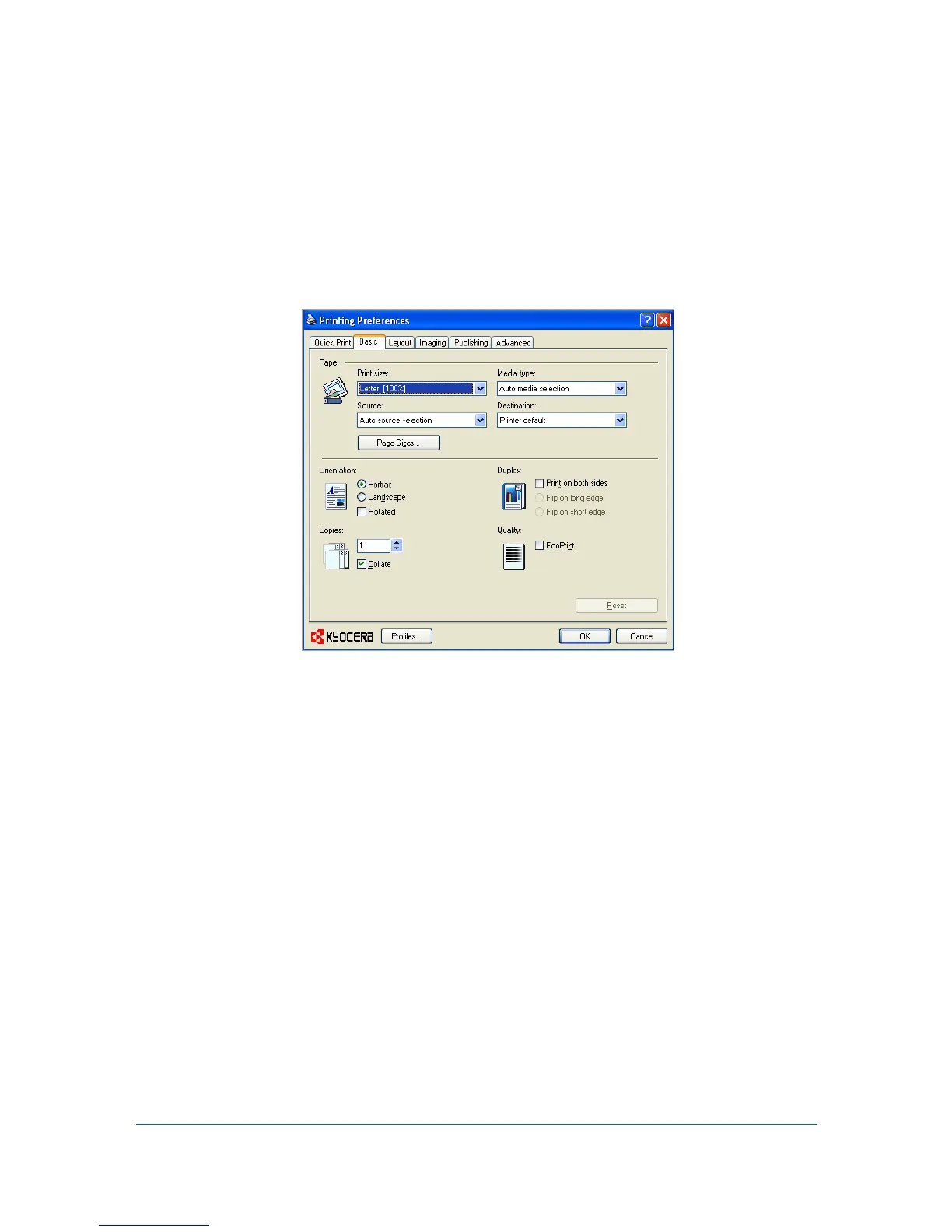

In the Basic tab, you can specify the most commonly used printer driver
settings.
Basic Paper Settings
The Basic tab contains several settings for the most commonly used printing
tasks.
Print size
This setting sets the size of the area that the printer prints to, regardless of
the actual paper size that is used by the printing system.
Source
This setting specifies the cassette or tray that the printing system draws
paper from. Unless you are using a custom paper type, you can leave it set
to Auto source selection.
Media type
This setting selects the Source based on the types of media that are
specified in the printing system. In general, you can leave it set to Auto
media selection.
Destination
This setting specifies which output tray is used for the print job output.
Orientation
This setting specifies the paper orientation of the print job. If Rotated is
selected, the print job orientation is rotated 180 degrees.
KX DRIVER
4-1

Kyocera FS-1120D Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Memory type	DDR
Memory slots	1
Processor model	405F5
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Sound pressure level (quiet mode)	49 dB
Total input capacity	300 sheets
Maximum input capacity	550 sheets
Total number of input trays	2
Maximum number of input trays	3
Multi-Purpose tray input capacity	50 sheets
Mobile printing technologies	Not supported
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	7.3 W
Power consumption (printing)	525 W
Power consumption (PowerSave)	4.4 W
Certification	GS, TUV, CE
Product color	Black, White
Custom media width	70 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Printing colors	Black
Maximum duty cycle	20000 pages per month
Page description languages	Epson LQ, IBM ProPrinter, PCL 5e, PCL 6, PJL, PostScript 3
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	393 mm
Width	375 mm
Height	250 mm
