Kyocera FS-1120D User Guide

9 Profiles
In Profiles, you can save printer driver settings as a profile. You can select
multiple options in the Quick Print tab and Printing Preferences, save them to
a profile, and use all of them at once when you apply the profile. A maximum of
26 profiles can be established in one driver, including the Factory Default
profile. Device options settings made in the Device Settings tab cannot be
saved to a profile.

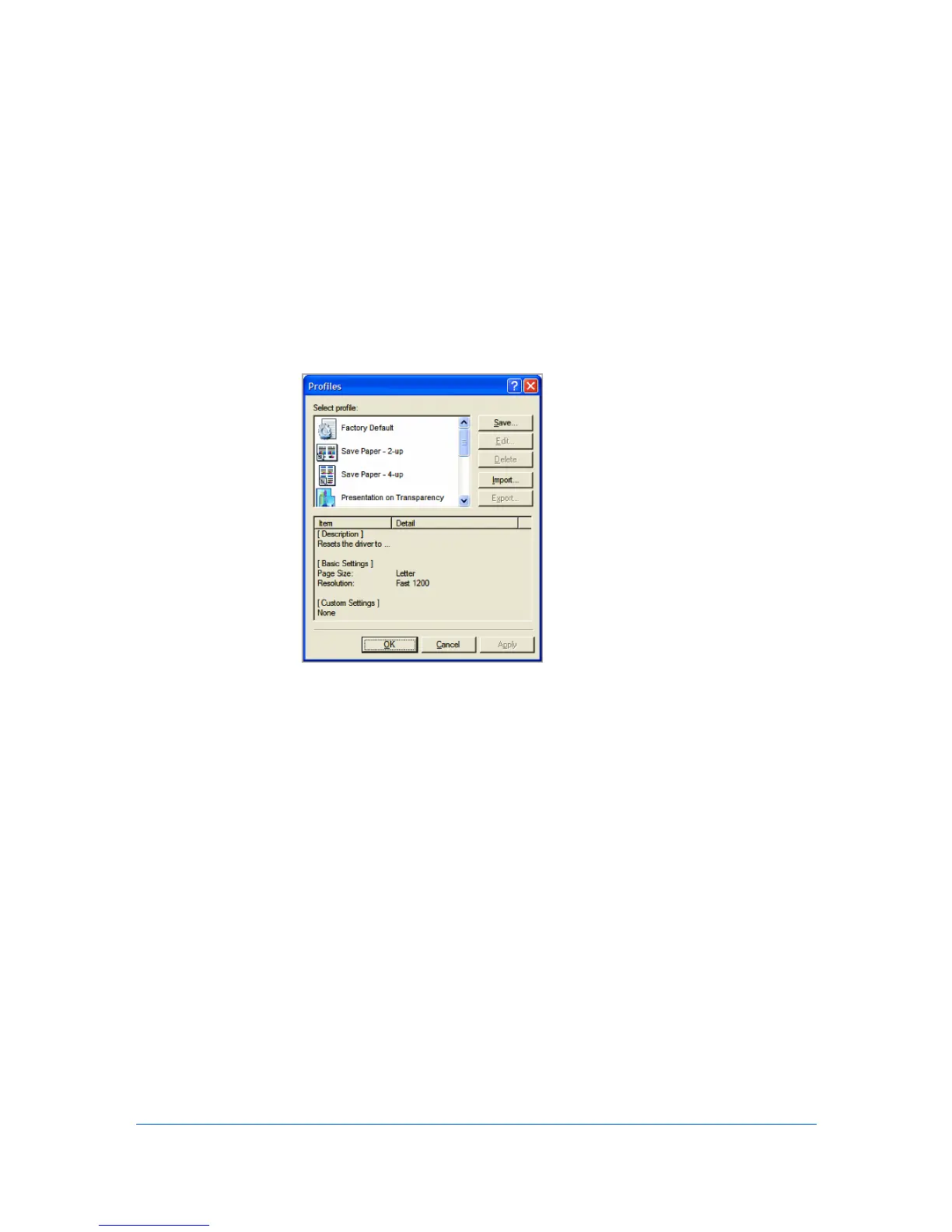

Saving a Profile
The Save button lets you create your own profiles. You can select the printing
options you want in the driver, then save the driver settings including your
customizations as a profile. You can then use that profile to print the same type
of print job again without having to reselect all the settings. In Printing
Preferences, the Profiles button appears at the bottom of all the tabs.
1
Set the printing options you want for your print job by opening Printing
Preferences and selecting all your driver settings.
2
Click Profiles > Save.
3
To identify the profile, type a Name, select an Icon, and type a Description.
4
Click OK to save the profile.
The newly added profile appears in the Profiles dialog box.
KX DRIVER
9-1

Kyocera FS-1120D Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Memory type	DDR
Memory slots	1
Processor model	405F5
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Sound pressure level (quiet mode)	49 dB
Total input capacity	300 sheets
Maximum input capacity	550 sheets
Total number of input trays	2
Maximum number of input trays	3
Multi-Purpose tray input capacity	50 sheets
Mobile printing technologies	Not supported
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	7.3 W
Power consumption (printing)	525 W
Power consumption (PowerSave)	4.4 W
Certification	GS, TUV, CE
Product color	Black, White
Custom media width	70 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Printing colors	Black
Maximum duty cycle	20000 pages per month
Page description languages	Epson LQ, IBM ProPrinter, PCL 5e, PCL 6, PJL, PostScript 3
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	393 mm
Width	375 mm
Height	250 mm
