Kyocera FS-1370DN - Other Electrical Components

2L0
2-2-4
(3) Other electrical components

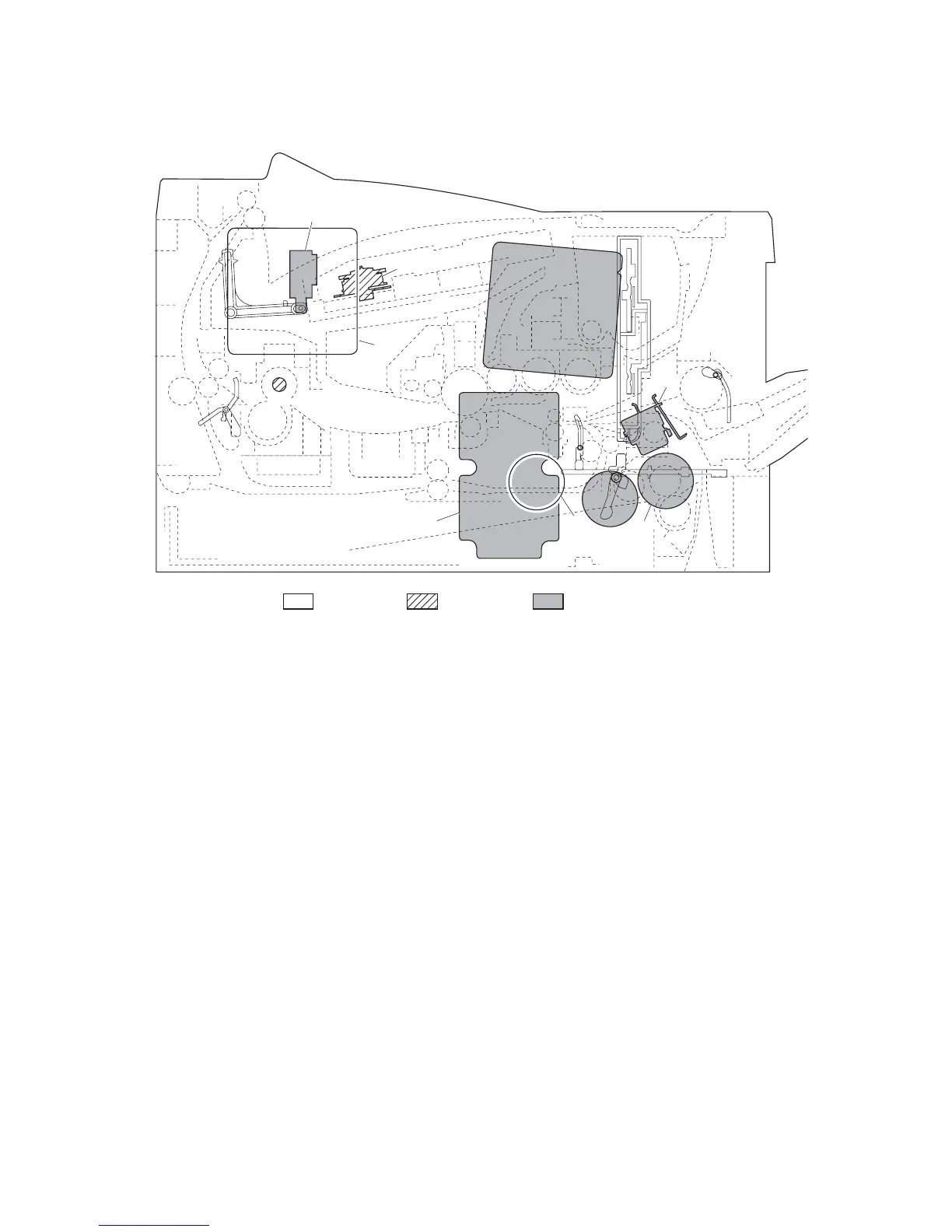

Figure 2-2-3 Other electrical components
1. Main motor ........................................................Drives the paper feed/conveying section and fuser unit.
2. Polygon motor...................................................Drives the polygon mirror.
3. Right cooling fan motor .....................................Cools the interior of machine.
4. Left cooling fan motor .......................................Cools the interior of machine.
5. Registration clutch ............................................Controls the secondary paper feed.
6. Paper feed clutch ..............................................Controls the paper cassette paper feed.
7. Developing clutch..............................................Controls the toner feed.
8. Duplex solenoid ................................................Controls the paper conveying at the duplex conveying section.
9. MP paper feed solenoid ....................................Controls the MPF bottom plate of the MP tray.
10. Fuser heater lamp.............................................Heats the heat roller.
Machine insideMachine left Machine right
1
2
3
4
10
5
9
7
6
8
