Kyocera FS-1370DN Service Manual

2L0
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP tray paper
feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed paper to the transfer/
separation section.
(1) Cassette paper feed section

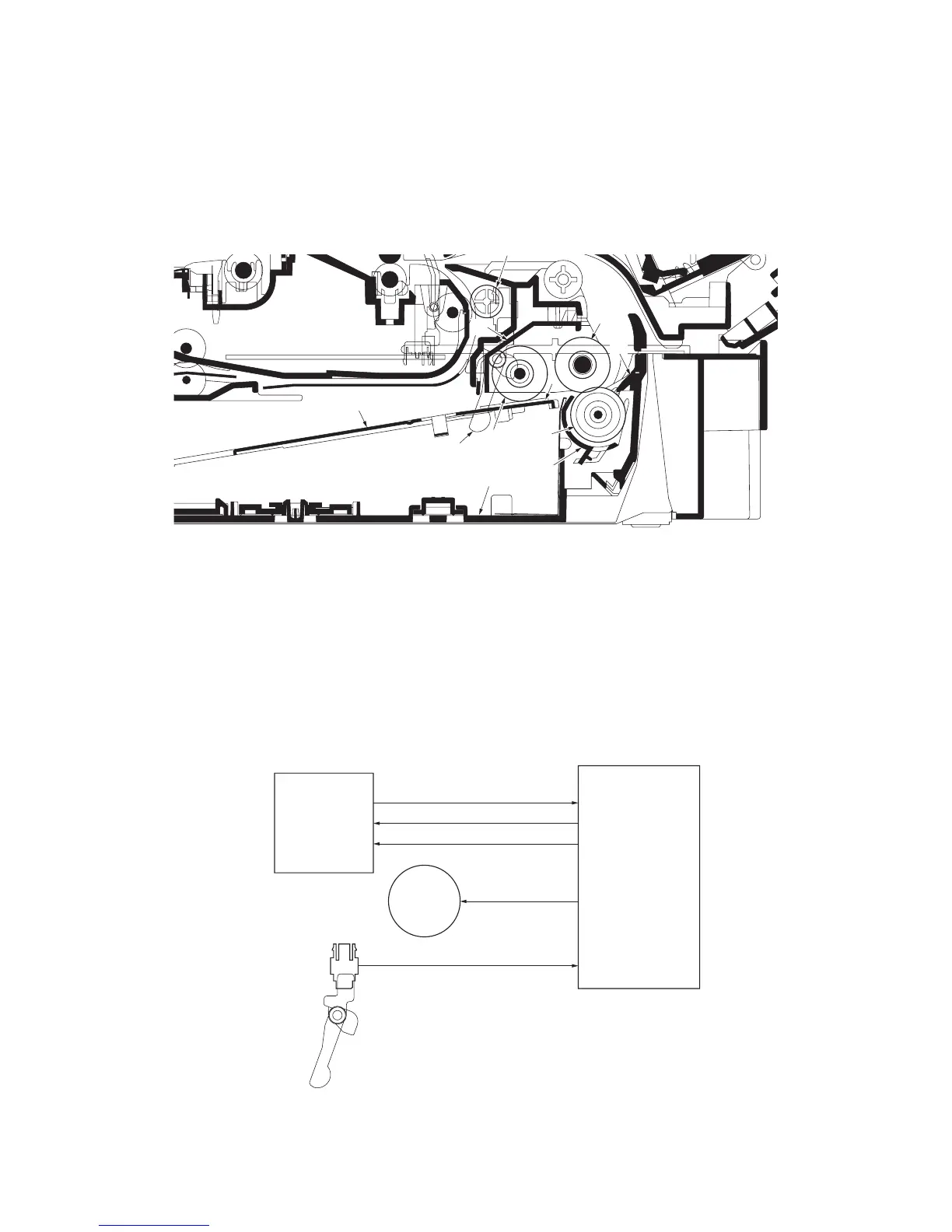

Figure 2-1-1 Cassette paper feed section
Figure 2-1-2Cassette paper feed section block diagram
1
9
7
3
4
5
2
6
8
10
11
(1) Pickup roller
(2) Paper feed roller
(3) Feed holder
(4) Retard roller
(5) Retard holder
(6) Retard guide
(7) Bottom plate
(8) Bottom pad
(9) Cassette base
(10) Paper sensor
(11) Actuator (paper sensor)
FEDDRN
MMOTRDYN
Paper sensor
Paper feed
Clutch
Main motor
Control PWB
PAPER
MOTCLK
REMOTEN
YC332-3
YC334-4
YC331-3
YC331-4
YC331-5

Kyocera FS-1370DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Memory type	DDR
Memory slots	1
Processor model	440F5
Processor family	PowerPC
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Sound pressure level (quiet mode)	49 dB
Total input capacity	300 sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Maximum number of input trays	4
Multi-Purpose tray input capacity	50 sheets
Mobile printing technologies	Not supported
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	11 W
Power consumption (printing)	554 W
Power consumption (PowerSave)	5.5 W
Printing colors	Black
Maximum duty cycle	50000 pages per month
Recommended duty cycle	2800 pages per month
Page description languages	Epson LQ, IBM ProPrinter, PCL 5e, PCL 6, PJL, PostScript 3
Display	LCD
Certification	GS, TUV, CE
Product color	Black, White
Custom media width	70 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Standard interfaces	Ethernet, USB 2.0
Server operating systems supported	Windows 2000 Advanced Server, Windows 2000 Server, Windows MultiPoint Server 2011, Windows SBS 2011 Essentials, Windows SBS 2011 Standard, Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	393 mm
Width	375 mm
Height	267 mm
