1-5-2 Outer covers
(1) Detaching and refitting the top cover
Procedure
1. Open the top cover.
2. Remove two screws.

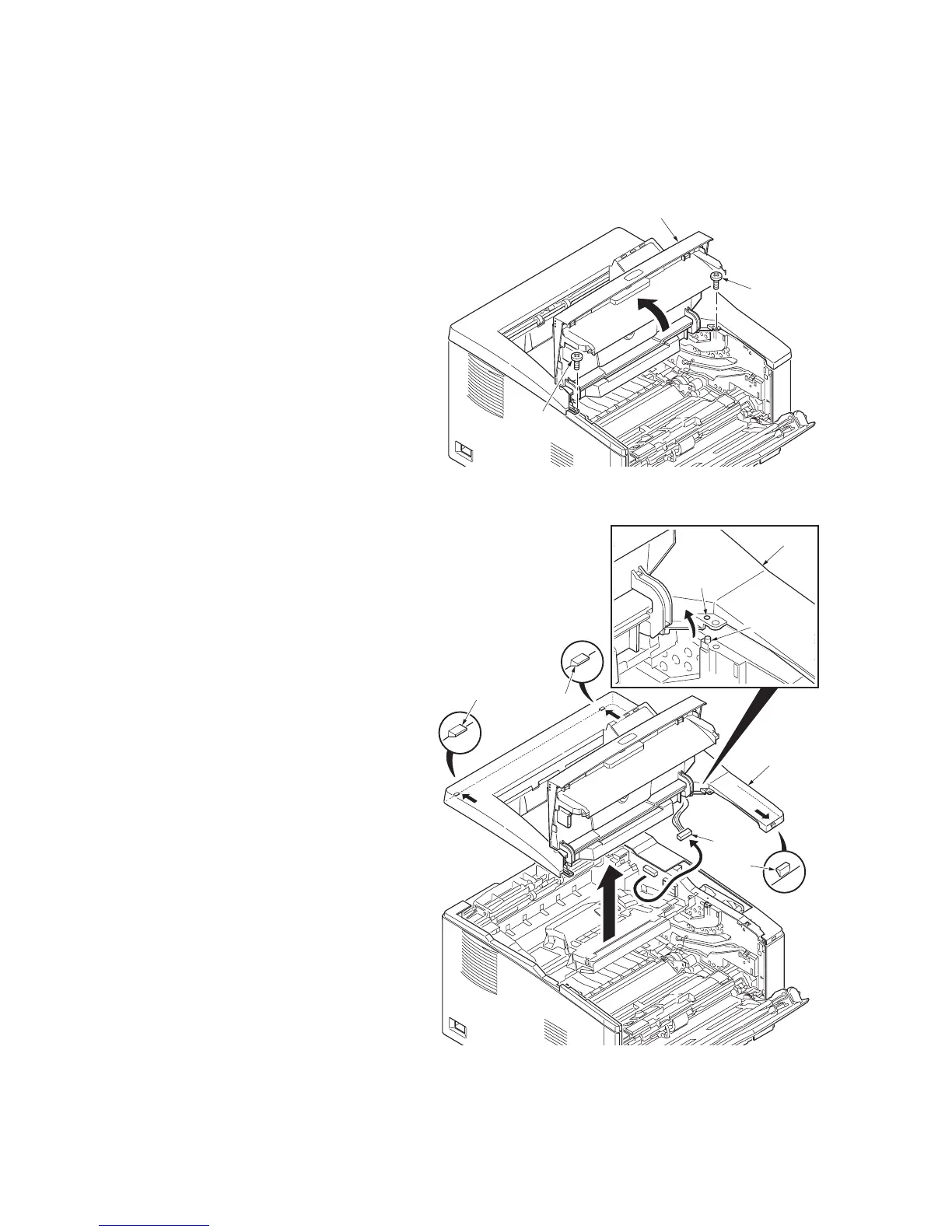

Figure 1-5-3
3. Extract the boss from the hole.
4. Unhook the A hook.
5. Unhook two B hooks.
6. Remove the connector.
7. Remove the top cover.
Figure 1-5-4
Top cover
Screw
Screw
Top cover
Top cover
Connector
Boss
B hook
B hook
A hook
Hole
