1-5-3 Paper feed section
(1) Detaching and refitting the paper feed roller assembly (paper feed roller and pickup roller)
Procedure
1. Remove the cassette.

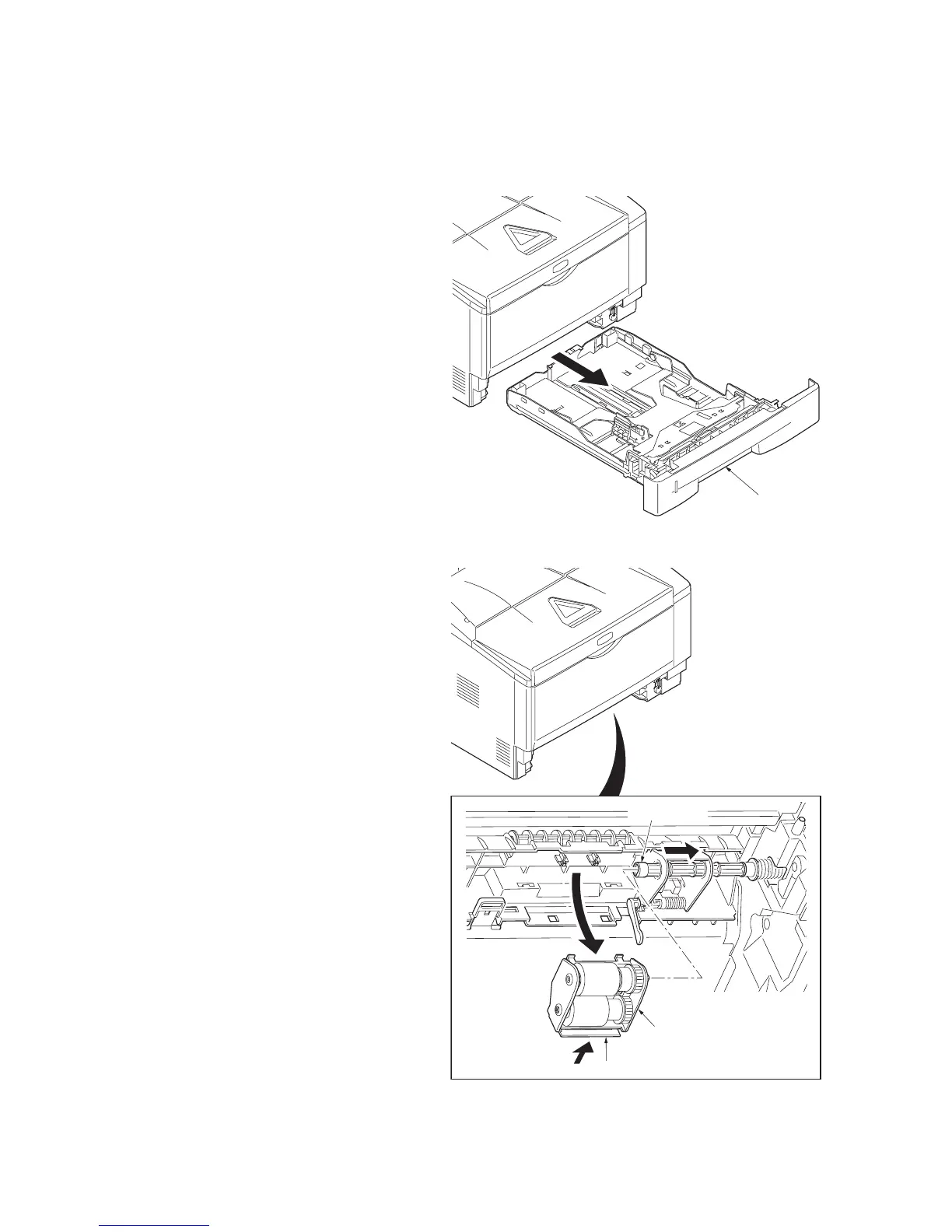

Figure 1-5-7
2. Slide the feed shaft.
3. While pressing the lever and then remove
the paper feed roller assembly.
Figure 1-5-8
Cassette
Paper feed roller
assembly
Lever
Feed shaft
