Kyocera FS-1370DN

2L0
1-5-10

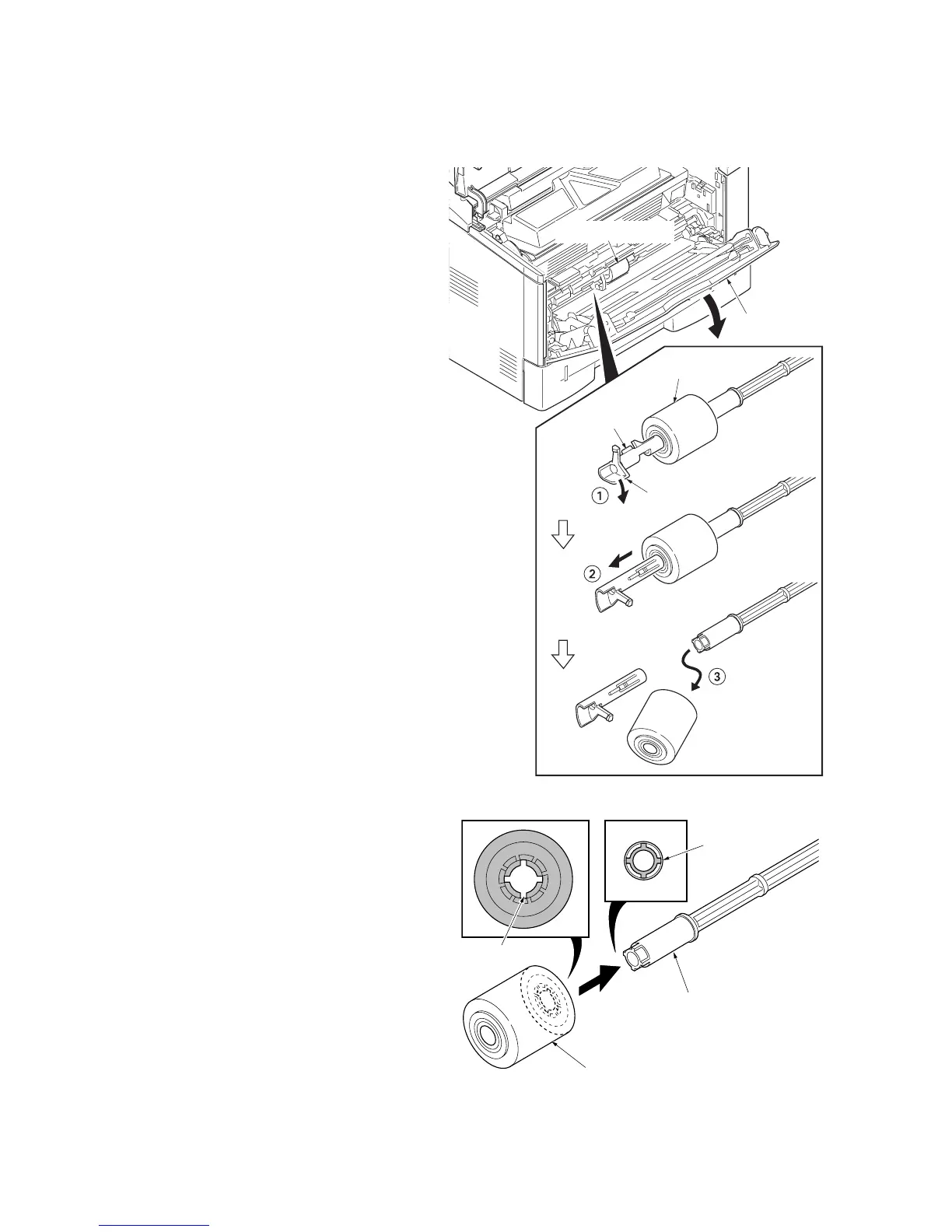

(3) Detaching and refitting the MP paper feed roller
Procedure
1. Open the front cover.
2. Pull the MP feed holder (lever) down (1).
3. Slide the MP feed holder (2).
4. Remove the MP paper feed roller (3).
Figure 1-5-13
5. Check or replace the MP paper feed roller
and refit all the removed parts.
When refitting the MP paper feed roller, be
sure to align the MPF feed shaft pivot with
the slotted hole on the MP paper feed roller.
Figure 1-5-14
MP feed holder
(Lever)
Front cover
MP paper feed roller
MP paper feed roller
MPF feed shaft
Pivot
MP paper feed roller
Slotted hole
