5. Check or replace the retard roller assembly
and refit all the removed parts.
Caution: Before refitting the retard roller
assembly, firmly install the spring onto the
projection of the retard roller assembly.

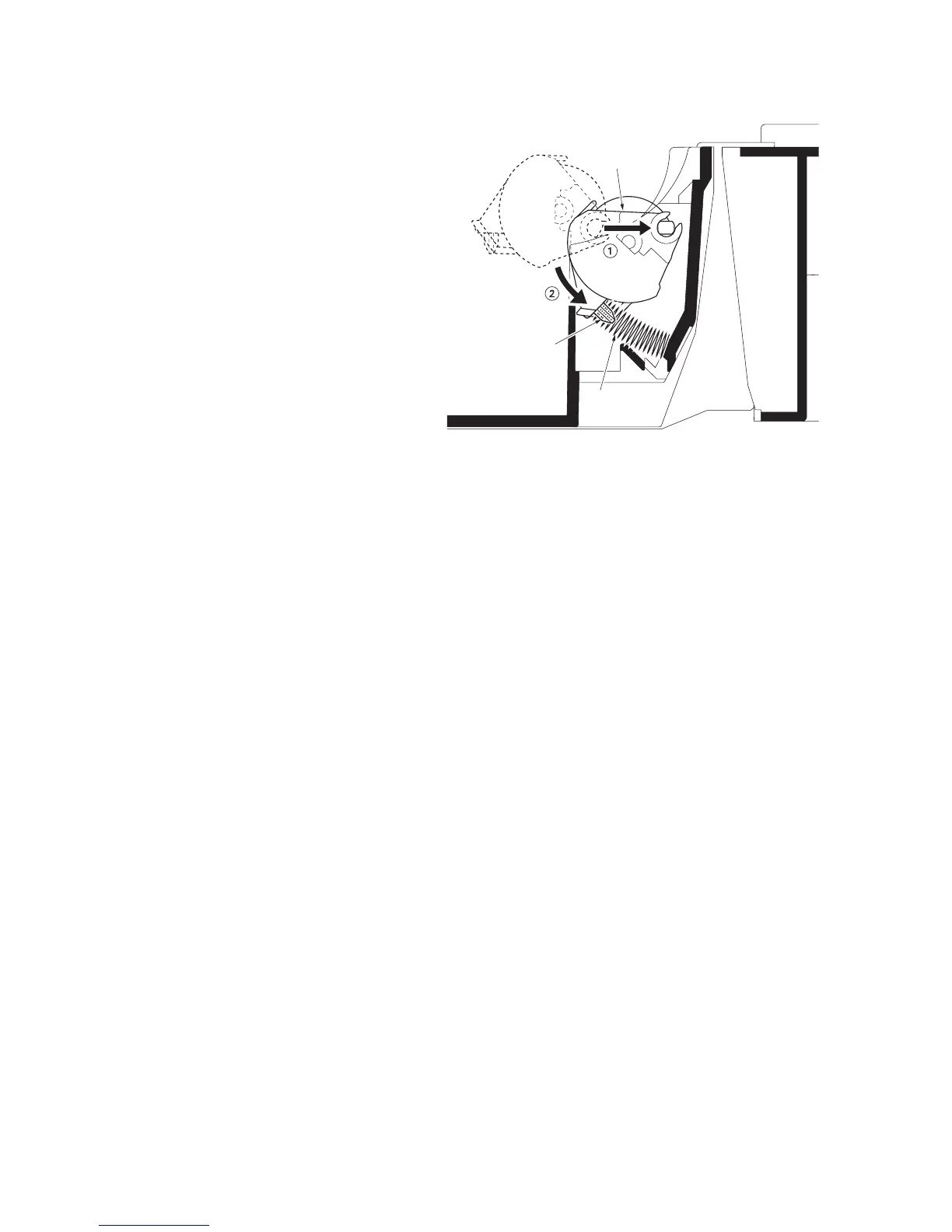

Figure 1-5-12
Spring
Retard roller
assembly
Projection
