(2) Detaching and refitting the right and left covers
Procedure
1. Remove the top cover (See page 1-5-3).
2. Remove the cassette (See page 1-5-6).
3. Open the front cover.
4. Unhook seven hooks and then remove the
right cover.

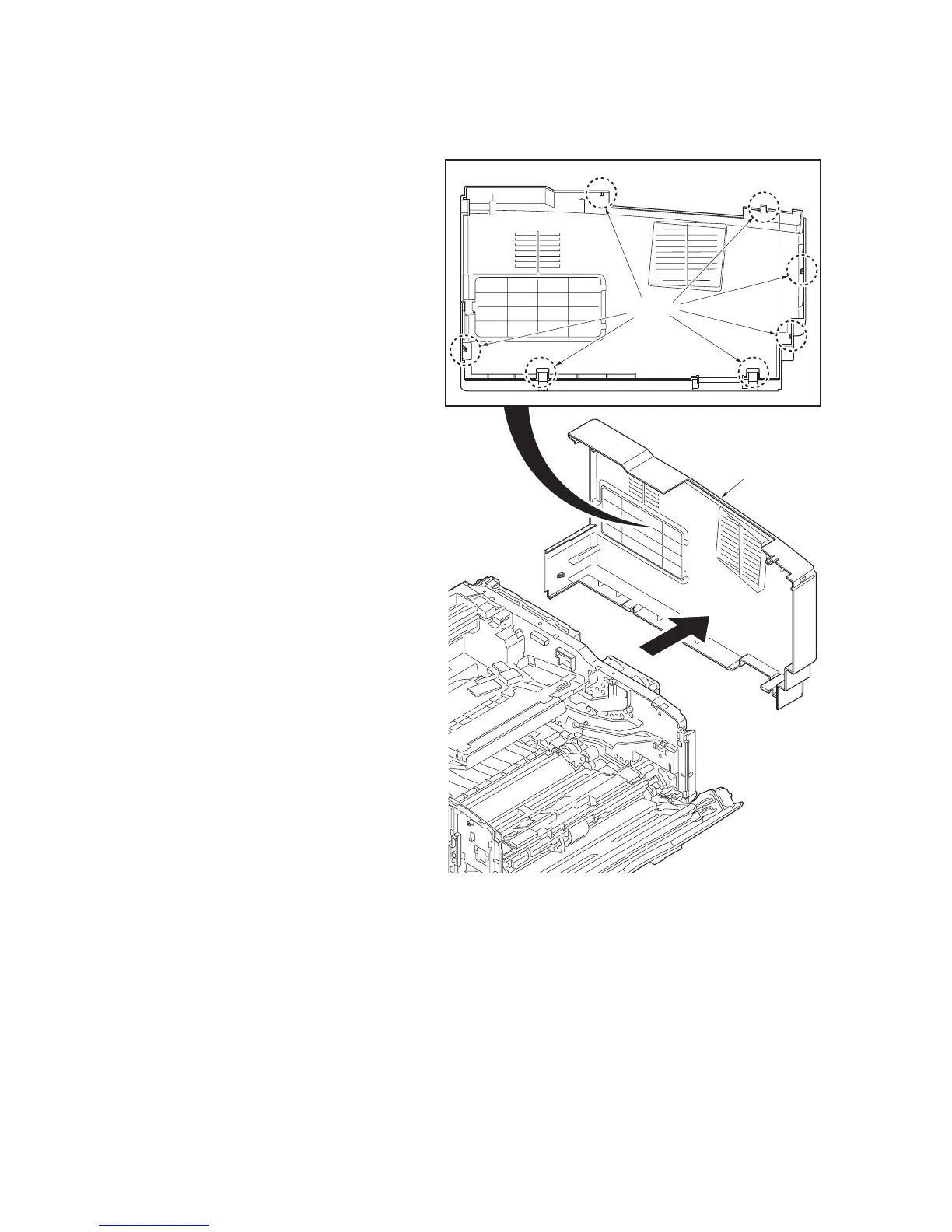

Figure 1-5-5
Right cover
Hooks
