Kyocera FS-1370DN - Fuser Section; Detaching and Refitting the Fuser Unit

2L0
1-5-16
1-5-7 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Remove the outer covers (See page 1-5-3).
2. Remove two connectors.
3. Release the wires form wire clamps.

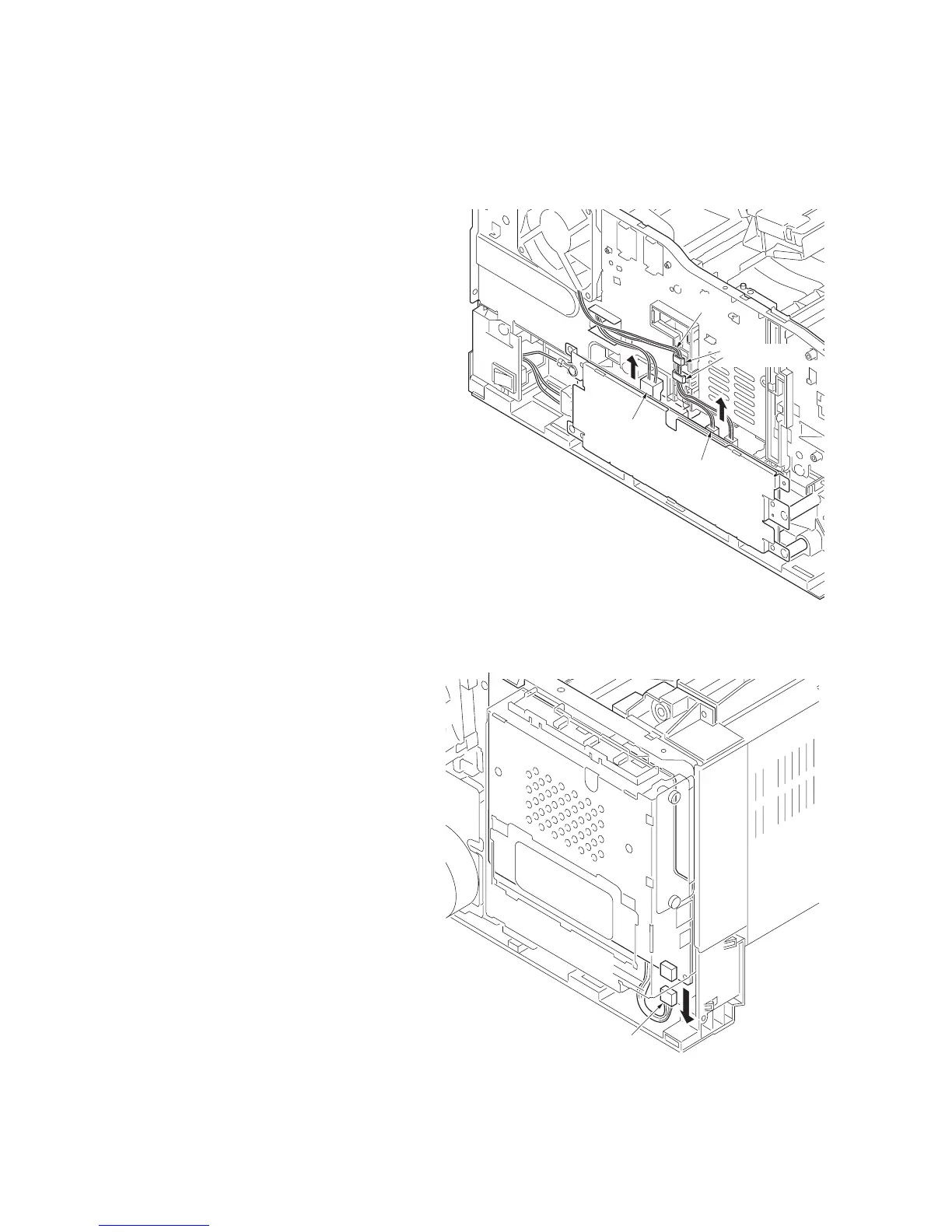

Figure 1-5-22
4. Remove the connector.
Figure 1-5-23
Connector
(Fuser heater lamp)
Connector
(Fuser thermistor)
Wire clamps
Wires
Connector
