2L0
1-5-17

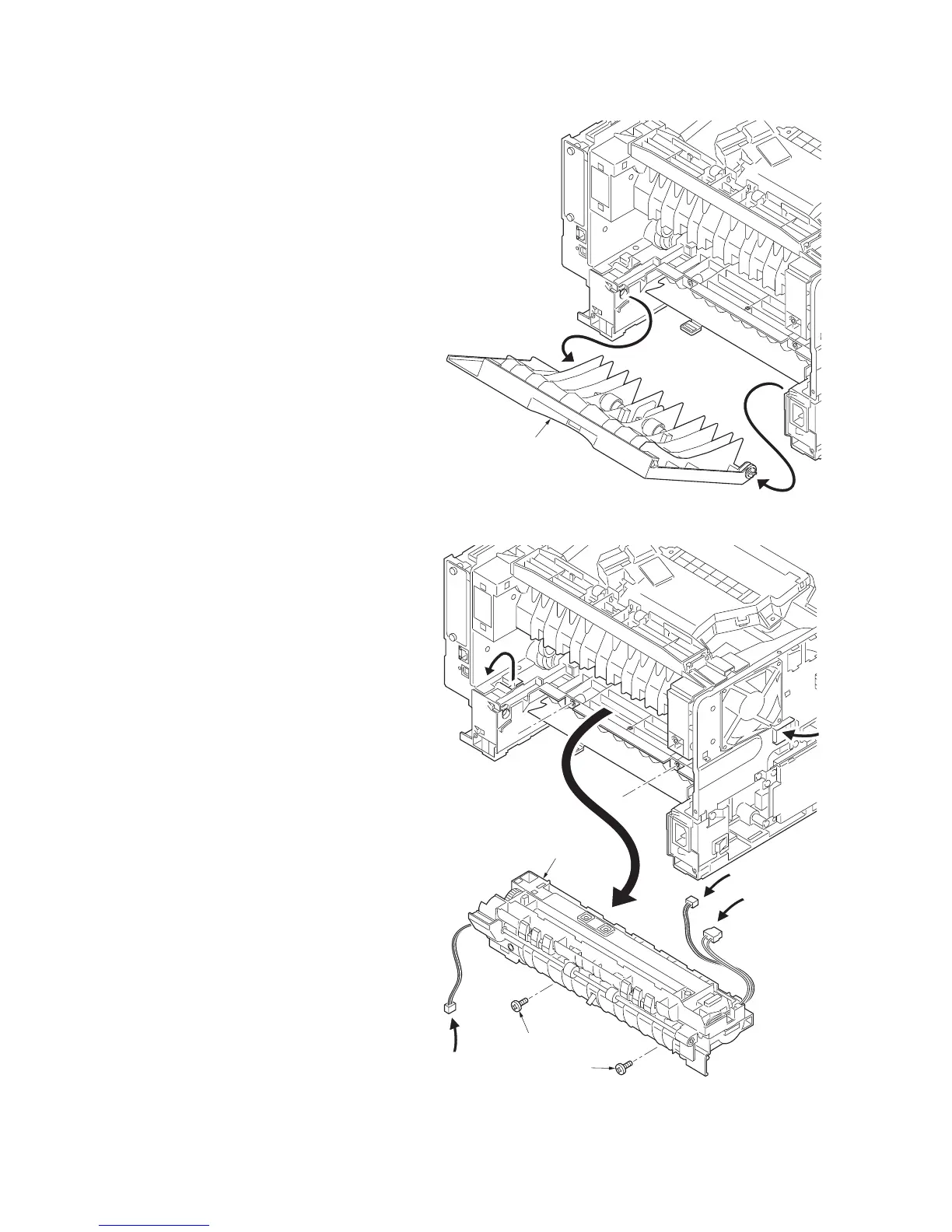

5. Open the rear cover and then remove the
rear cover.
Figure 1-5-24
6. Remove two screws and then remove the
fuser unit.
7. Check or replace the fuser unit and refit all
the removed parts.
Figure 1-5-25
Rear cover
Screw
Screw
Fuser unit
