Kyocera FS-1370DN - Detaching and Refitting the Laser Scanner Unit

2L0
1-5-29
(2) Detaching and refitting the laser scanner unit
Procedure
1. Remove the right cover (See page 1-5-4).
2. Remove the connector from the control
PWB.
3. Release the wire clamp.
4. Draw in the connector inside.

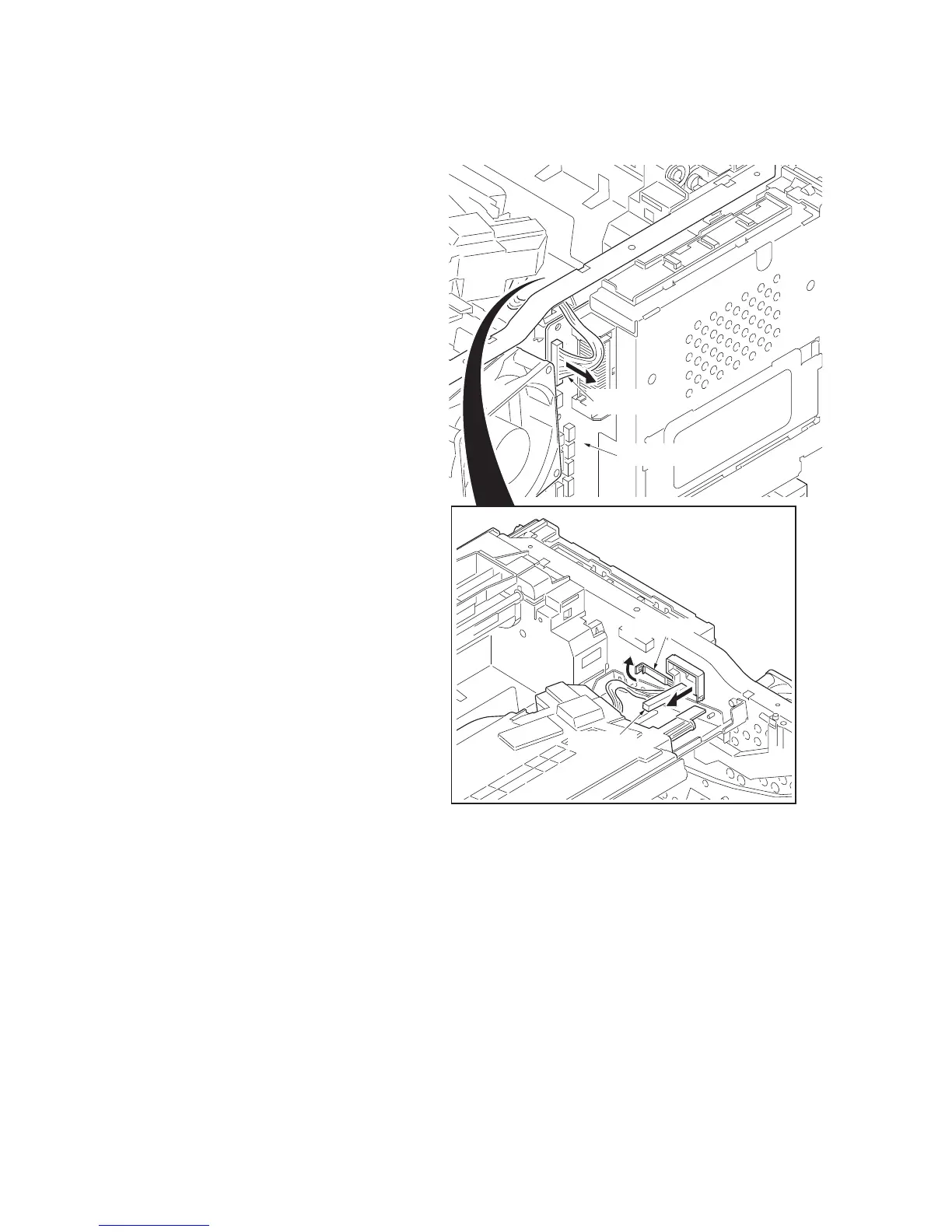

Figure 1-5-41
Wire clamp
Connector
Connector
Control PWB
