5. Remove four screws and then remove the
laser scanner unit.
6. Check or replace the laser scanner unit and
refit all the removed parts.

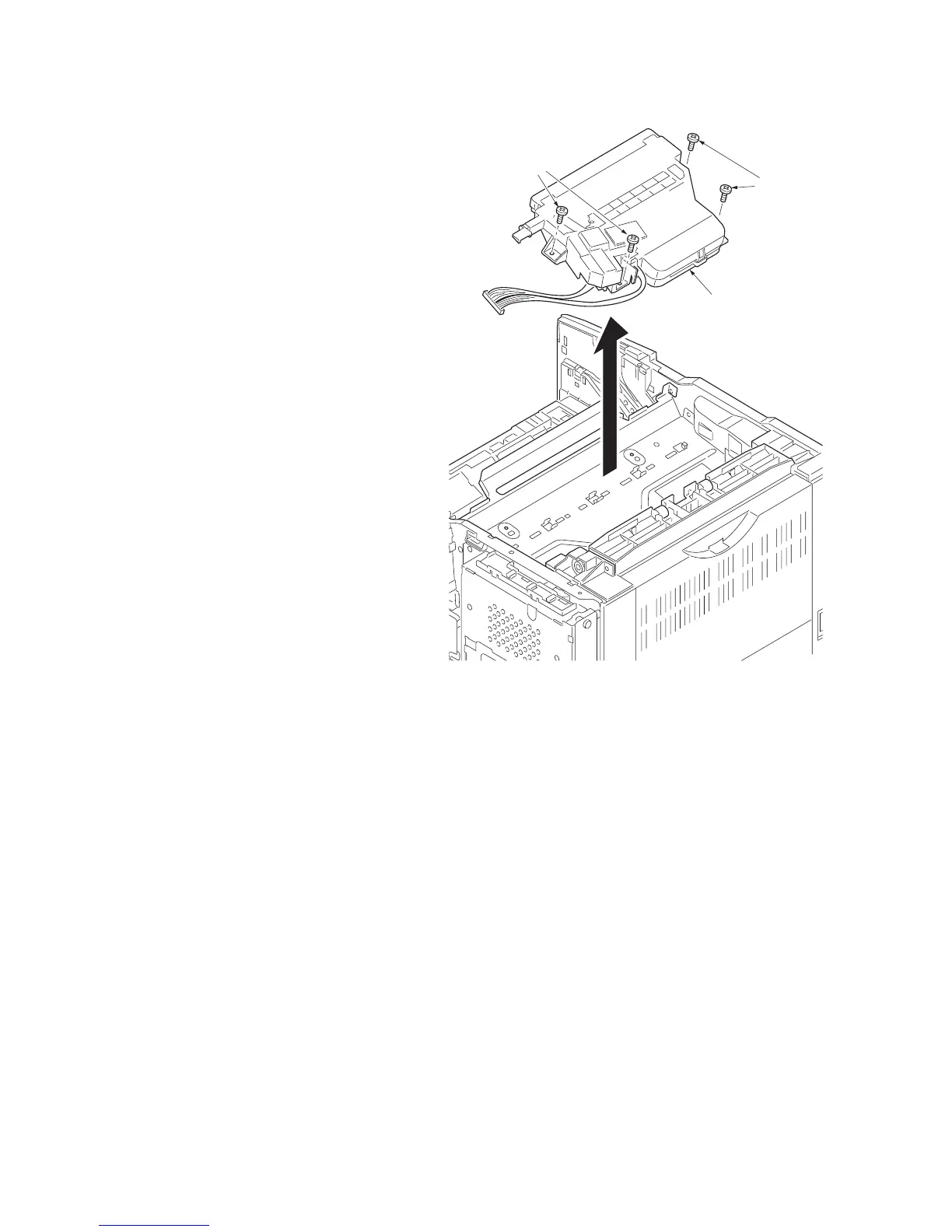

Figure 1-5-42
Screws
Screws
Laser scanner unit
