1-5-6 Transfer/separation section
(1) Detaching and refitting the transfer roller
Procedure
1. Remove the developing unit (See page 1-5-
11).
2. Remove the drum unit (See page 1-5-12).
3. Slide the paper chute guide and unhook the
hooks.
4. Remove the paper chute guide.

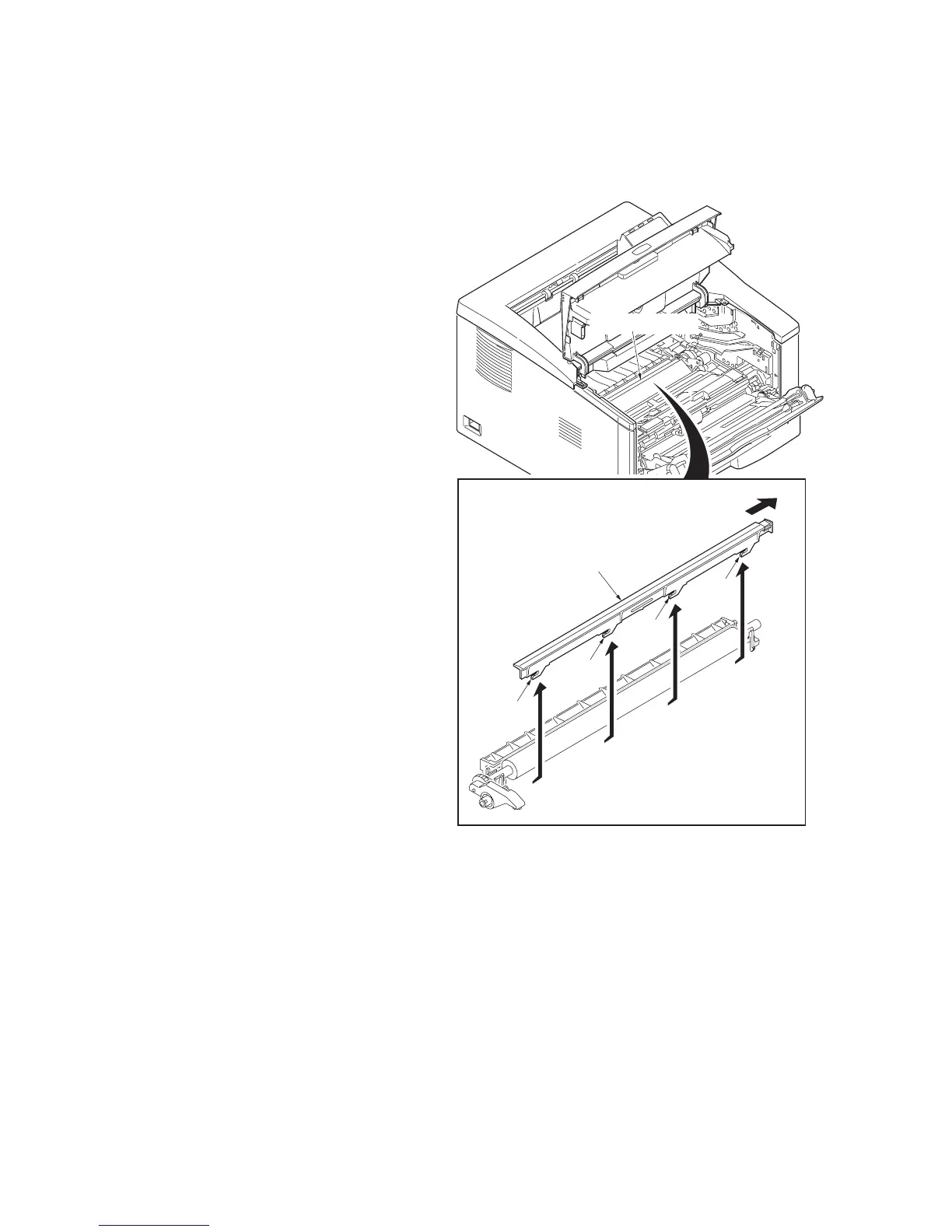

Figure 1-5-19
Hook
Hook
Hook
Hook
Paper chute guide
Paper chute guide
