Kyocera FS-1370DN

2L0
2-1-7

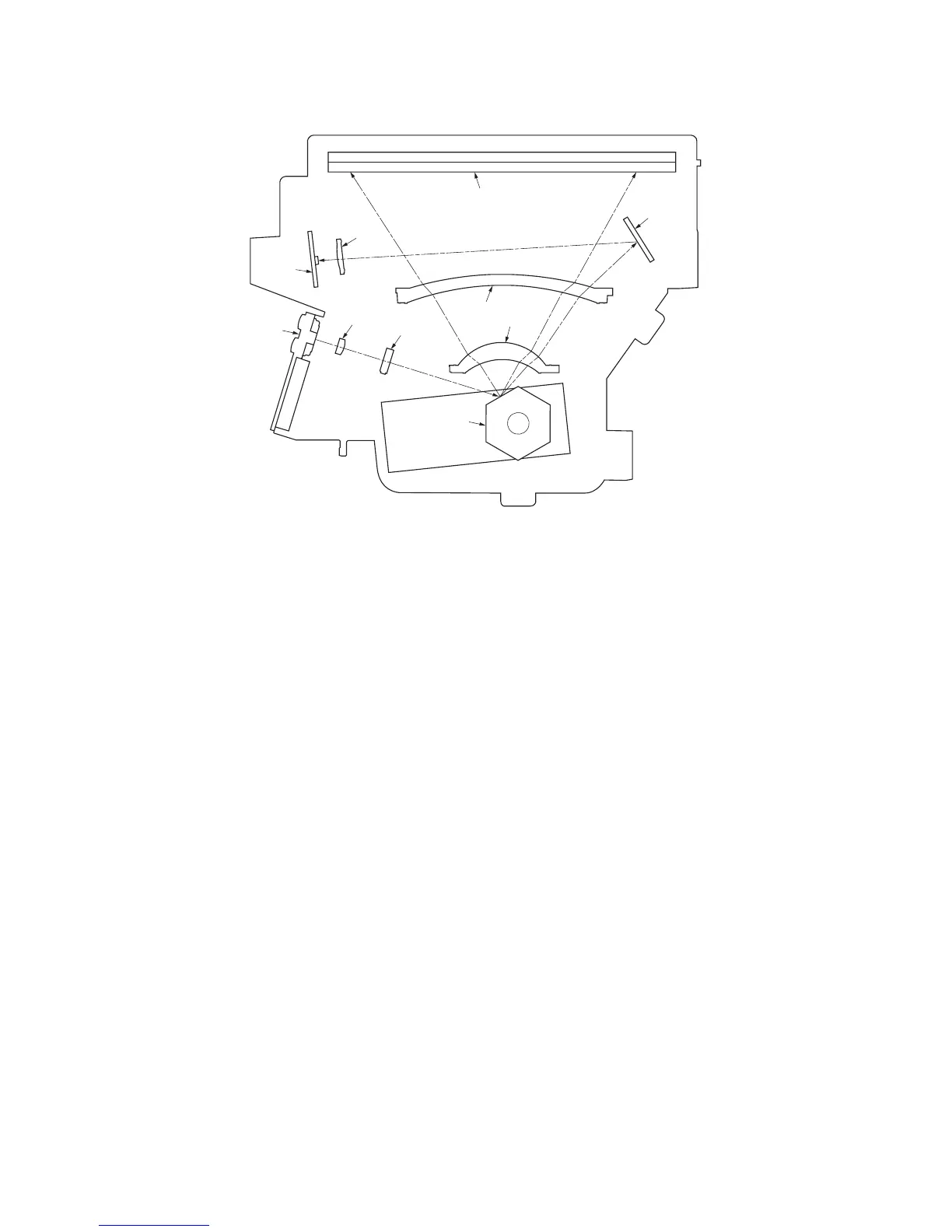

Figure 2-1-11 Laser scanner unit
1
2
3
8
9
10
4
5
6
7
(1) Polygon motor (mirror)
(2) Laser diode (APC PWB)
(3) Collimator lens
(4) Cylindrical lens
(5) F-θ lens
(6) F-θ lens
(7) PD mirror
(8) SOS lens
(9) Pin photo diode sensor (PD PWB)
(10) LSU mirror
