Kyocera FS-9120DN Installation Guide

10
8 Loading Paper in the Paper Cassettes and MP
(Multi-Purpose) Tray
The paper cassette can accommodate A5 to A3/Ledger size paper and can hold approxi-
mately 500 sheets. The MP tray can accommodate various paper sizes and can hold approx-
imately 200 sheets of paper.
The following explains the procedure for loading paper in the paper casette and the MP tray.
The paper cassette can be used to supply standard paper from A5 size up to ledger size by
adjusting its paper guide and paper stopper position. The paper cassette is shipped from the
factory set to A4 or letter size.
The positions for each paper size are indicated inside the paper feed cassette.
Standard paper sizes are attached to the inside of the paper cassette as shown in the follow-
ing figure.

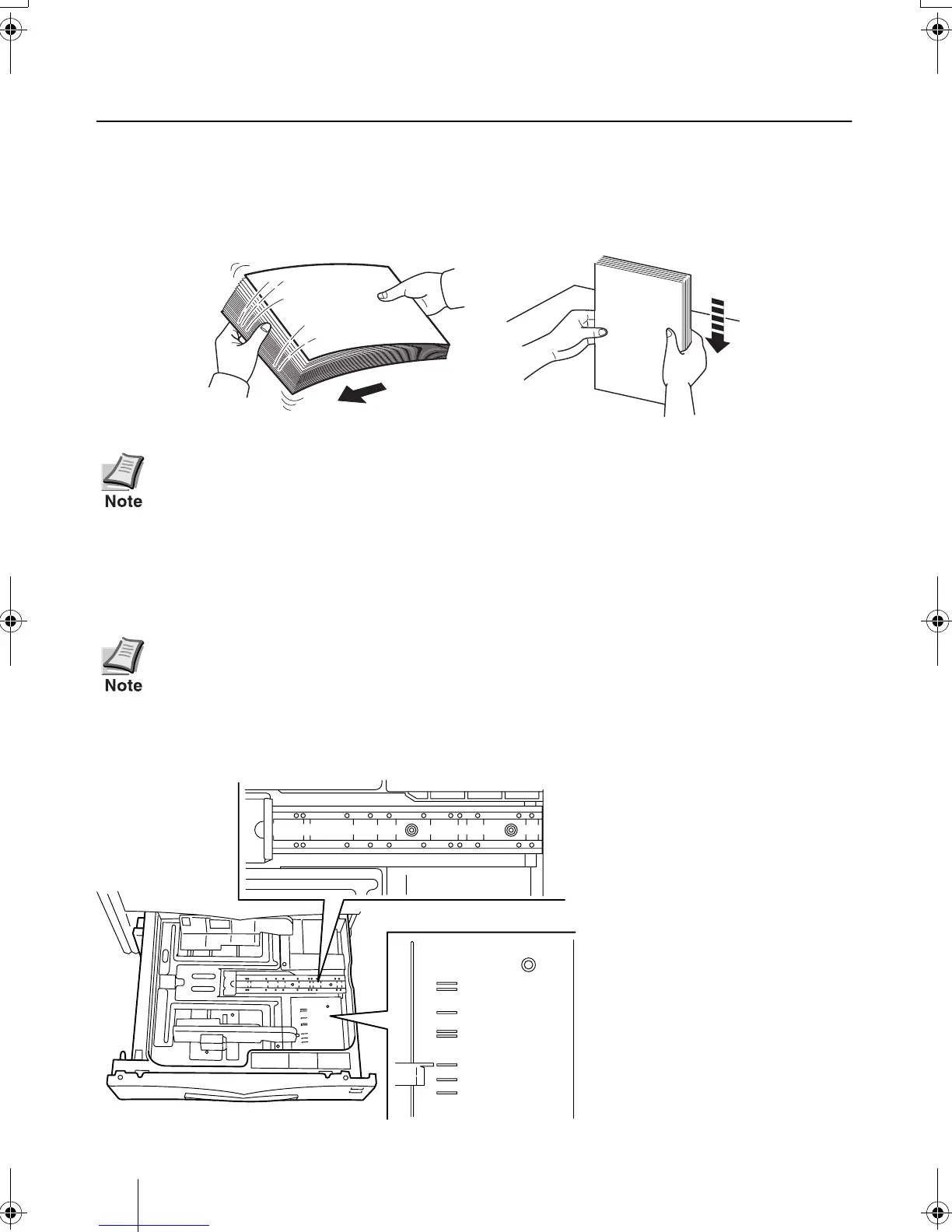

Fan the paper, then tap it on a level surface. This avoid media jams or skewed printing.
The paper cassettes are normally used in landscape direction for A4, B5, and letter sizes.
T h e y c a n a l s o b e u s e d i n p o r t r a i t d i r e c t i o n f o r these sizes by adjusting them to A4R, B5R,
and 8.5 ×11R position.
5
.5
X
8
.5
R
1
1
X
1
7
1
1
X
8
.5
8
.5
X
1
1
R
8
.5
X
1
4
A
5
R
B
5
R
A
3
A
4
B
4
B
5
A
4
R
F
O
L
IO
B5 A4
A5R A4R FOL B5R
8.5
11 14 15
1
7
B4
A
3
5.5
X
8.5R
11
X
17 11
X
8.5
8.5
X
11R 8.5
X
14
A5R
B5R
A3 A4
B4 B5
A4R FOLIO
B5 A4
A5R A4R FOL B5R
8.5
11 14 15 17
B4 A3
HUFPKPUVCNNDQQMࡍ࡯ࠫ㧞㧜㧜㧟ᐕ㧝㧝᦬㧝㧤ᣣޓἫᦐᣣޓඦᓟ㧟ᤨ㧝㧜ಽ

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
