Kyocera FS-9120DN Installation Guide

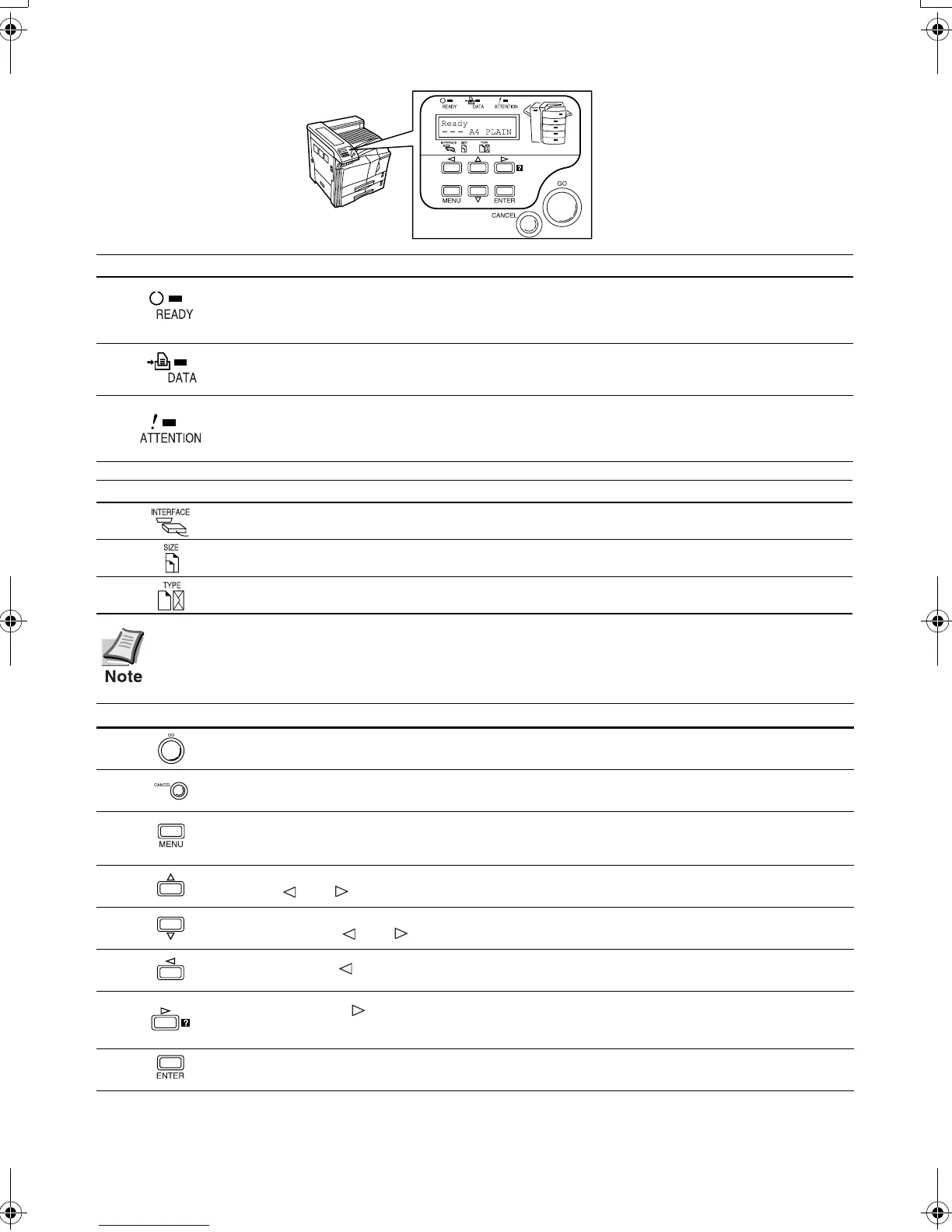

Operator Panel
For more details on operating procedures, see the Operation Guide contained as a PDF file in the Kyocera Mita
Document Library CD-ROM supplied with the printer.
2003.11
Printed in China
2FJ80010A
Indicator Name Description
Ready
indicator
Flashing: Indicates when an error occurs that you can clear by yourself.
Lit: Indicates that the printer is on-line. Printing is possible.
Off:
Indicates that the printer is off-line. Data can be received but will not be
printed. Also indicates when printing is automatically stopped due to error.
Data
indicator
Flashing: Indicates data transfer.
Lit: Indicates either that data is being processed, or that data is being writ-
ten to the memory card.
Attention
indicator
Flashing: Indicates when the printer needs maintenance attention or the
printer is warming up (Please wait).
Lit: Indicates when a problem or an error occurs that you can clear by your-
self. (For example, paper jam occurs.)
Message Display Name Description
Interface
indicator
The interface indicator shows which of the printer’s interfaces is currently
active. The default is no selection (---).
Paper size
indicator
Paper size indicator Indicates the paper size of the current paper cassette. The
default is letter size (LT) for the U.S.A. and A4 (A4) for European countries.
Paper type
indicator
Paper type indicator Indicates the paper type of the current paper cassette.
The default is PLAIN.
If the number of pages to be printed is set to 2 or more, when printing starts, the lower
line of the message display shows the number of printed pages/set number of pages to
be printed.
Key Function
•Switches the printer on-line and off-line.
•Prints and feed out one page.
•Abandons a printing job, resets numeric values, or cancels a setting procedure.
•Used to stop the sounding of the alarm buzzer indicating the occurrence of an error.
•When pressed during mode selection, terminates the setting and returns to the Ready
condition.
•Used to select the emulation, font, character code set; to read a memory card and others.
Lets you access the desired item or enter numeric values. In some of the control procedures,
the and keys are used to enter or exit the sub items.
Enables access to the desired item or entering of numeric values. In some of the control pro-
cedures, the and keys are used to enter or exit the sub items.
Used as the key in the mode selection function.
• Used as the key in the mode selection function.
• Displays online help messages on the message display when paper jam errors occur.
Finalizes numeric values and other selections.
HUFPKPUVCNNDQQMࡍ࡯ࠫ㧞㧜㧜㧟ᐕ㧝㧝᦬㧝㧤ᣣޓἫᦐᣣޓඦᓟ㧟ᤨ㧝㧜ಽ

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
