FS-9120DN/9520DN
1-6-6

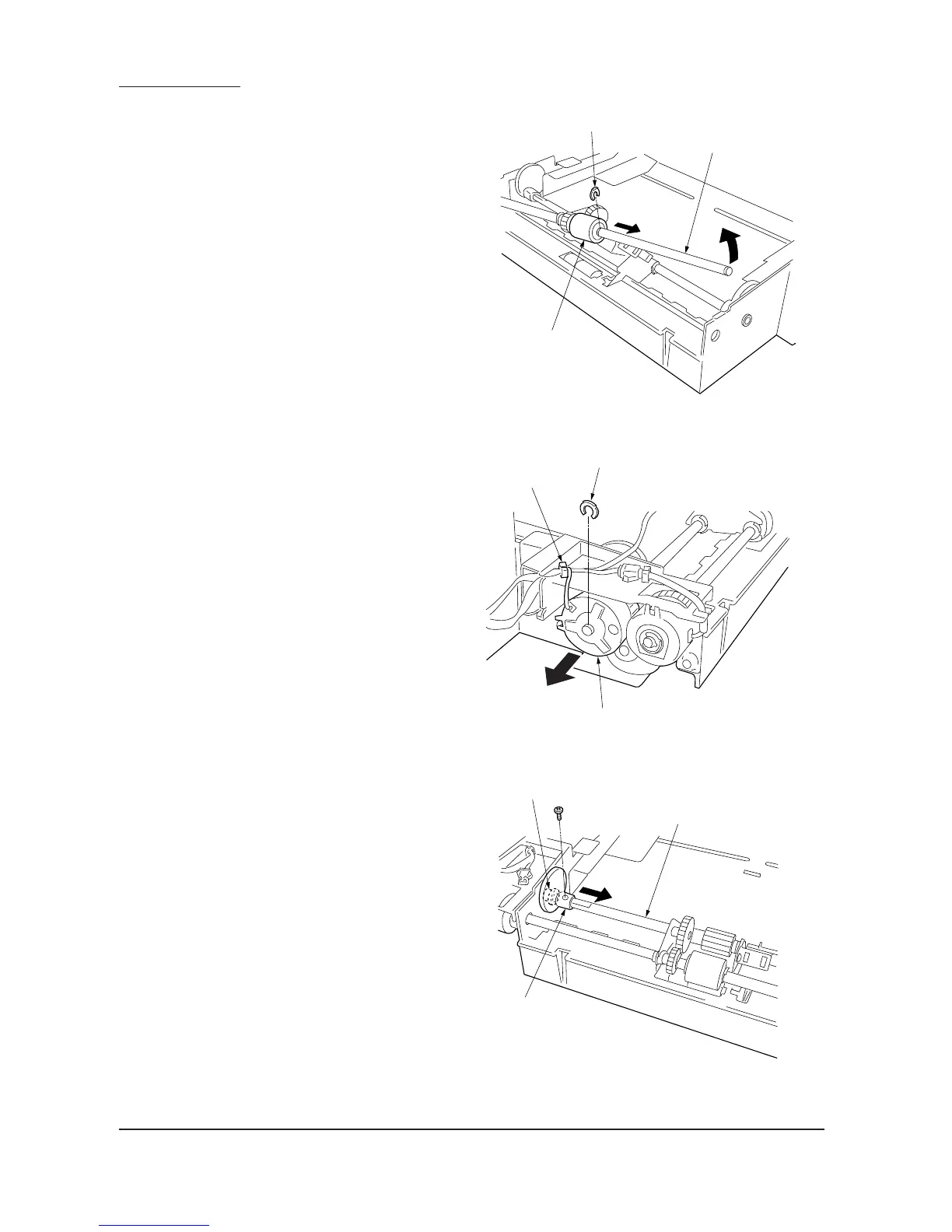

8. Raise the MP paper feed shaft as shown in
the illustration, remove the stop ring, and then
remove the MP paper feed pulley.
Caution:
• When fitting the MP paper feed pulley, keep the
blue end of the paper feed toward the machine
rear.
Figure 1-6-13
• Removing the MP forwarding pulley
9. Remove the wire of the MP paper feed clutch
from the clamp.
10. Remove the stop ring and MP paper feed
clutch.
•When refitting, insert the cutout in the MP
paper feed clutch over the stopper on the
copier.
Figure 1-6-14
11.Remove the screw from the cam at the rear
of the MP forwarding pulley shaft and move
the cam and the bushing toward the inner
side.
Figure 1-6-15
Stop ring
MP paper feed pulley
MP paper feed shaft
MP paper feed clutch
Stop ring
Clamp
Bushing
MP forwarding pulley shaft
Cam
To Next Page
