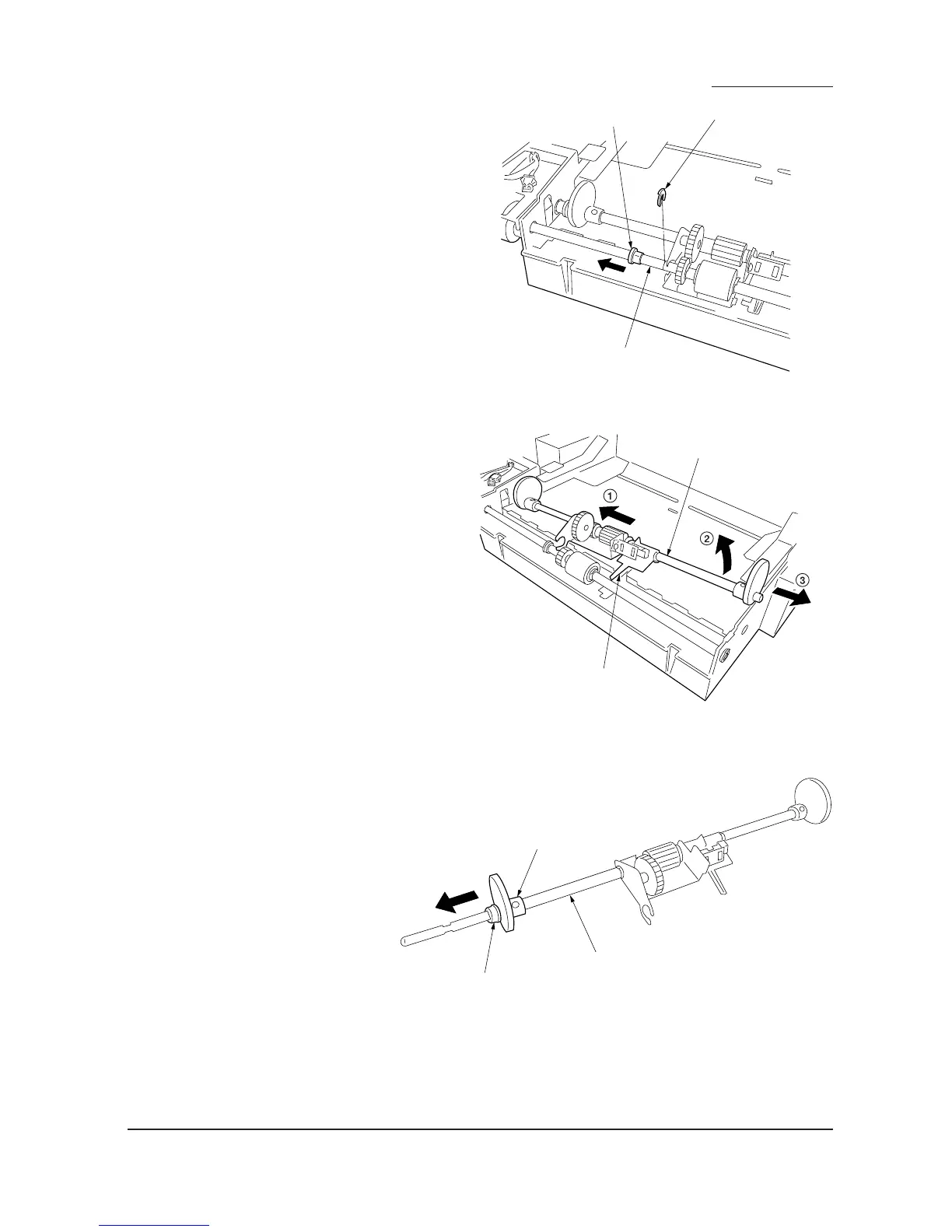

12. Remove the stop ring of the MP paper feed
shaft and slide the bushing in the direction of
the arrow.
Figure 1-6-16
13. Slide the MP forwarding pulley shaft
temporarily toward the rear side and then
raise it to remove from the MP tray unit.
* Remove the shaft while raising the actuator of
the MP paper switch.
Figure 1-6-17
14. Remove the bushing an cam on the rear of
the MP forwarding pulley shaft.
Figure 1-6-18
MP paper feed shaft
Bushing
Stop ring
MP forwarding pulley shaft
Acutuator
