FS-9120DN/9520DN
1-6-8

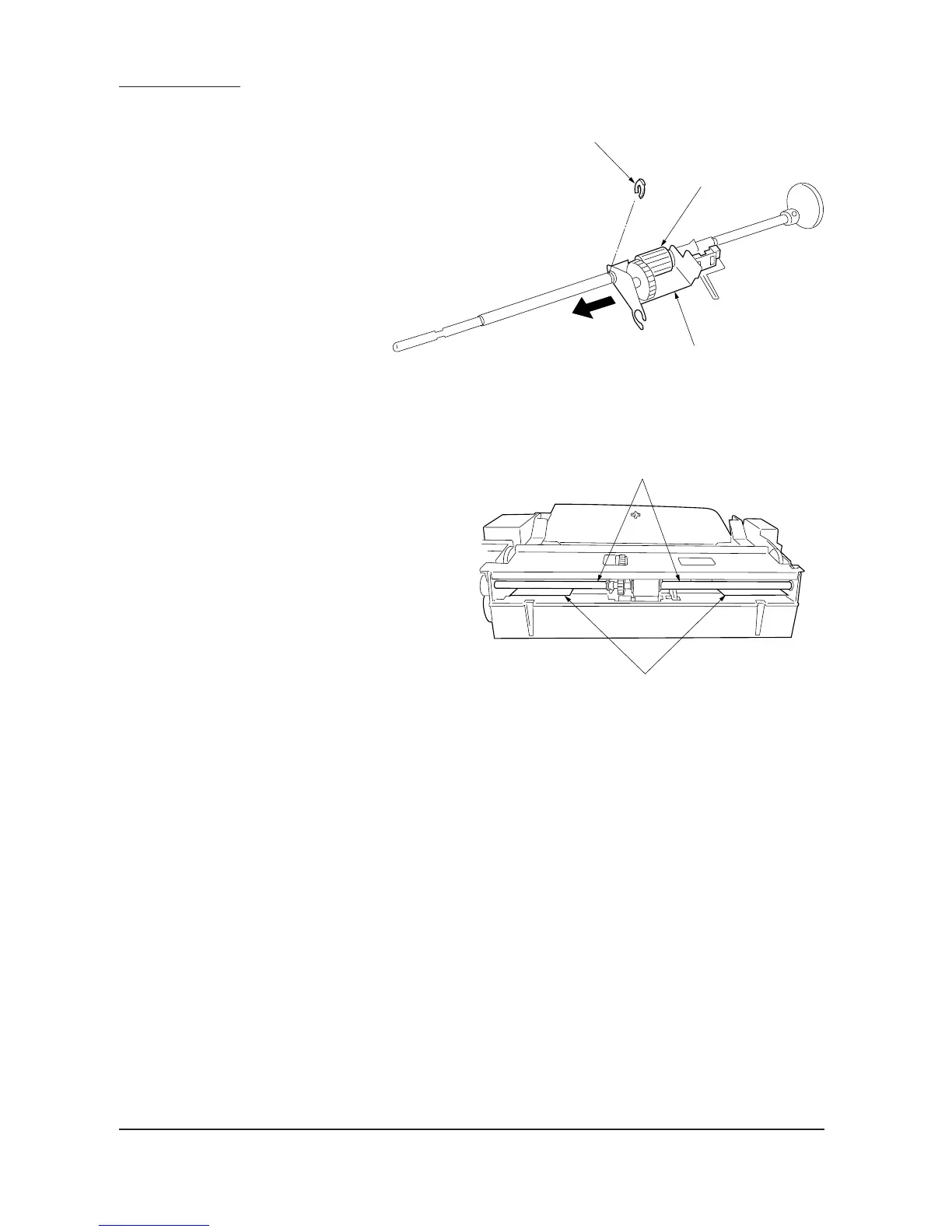

15. Remove the stop ring and slide the MP
forwarding pulley with the forwarding pulley
retainer from the shaft to remove it.
16. Replace the MP separation, MP paper feed
and MP forwarding pulleys.
Figure 1-6-19
17. Refit all removed parts.
*Fit the MP tray unit cover so that the film on
the cover is positioned under the MP paper
feed shaft.
Figure 1-6-20
Stop ring
Forwarding pulley retainer
MP forwarding pulley
Films
MP paper feed shaft
