FS-9120DN/9520DN
1-6-19

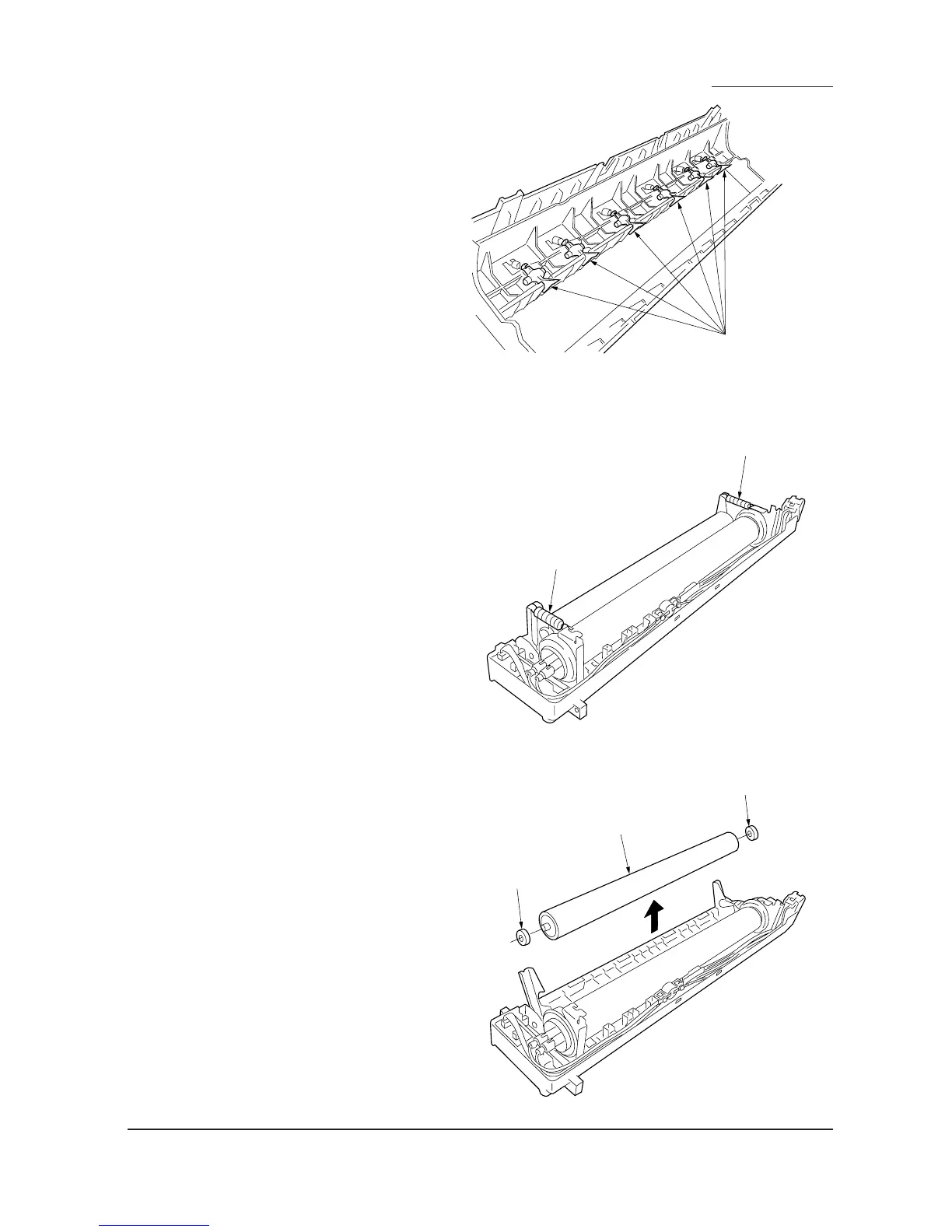

3. Remove the heat roller separation claws from
the upper fuser cover.
4. Replace the heat roller separation claws and
refit all the removed parts.
Figure 1-6-38
(3) Detaching and refitting the press roller
Follow the procedure below to replace the press roller.
Procedure
1. Remove the fuser unit (see page 1-6-18).
2. Remove the upper fuser cover (see page 1-6-
18).
3. Remove the front and rear press springs.
Figure 1-6-39
4. Detach the press roller from the fuser unit
and remove the front and rear bearings.
5. Replace the press roller and refit all the
removed parts.
Figure 1-6-40
Heat roller separation claws
Press spring
Press spring
Press roller
Bearing
Bearing
To Next Page
