(4) Detaching and refitting the high-voltage transformer unit
Follow the procedure below to detaching and refitting the high-voltage transformer unit.
Procedure
1. Remove the eight screws and then remove
the rear cover (see page 1-6-24).
2. Remove the thirteen screws and then remove
the controller-box cover (see page 1-6-24).
3. Remove four screws and then remove the
high-voltage transformer unit.
4. Replace the high-voltage transformer unit and
refit all the removed parts.

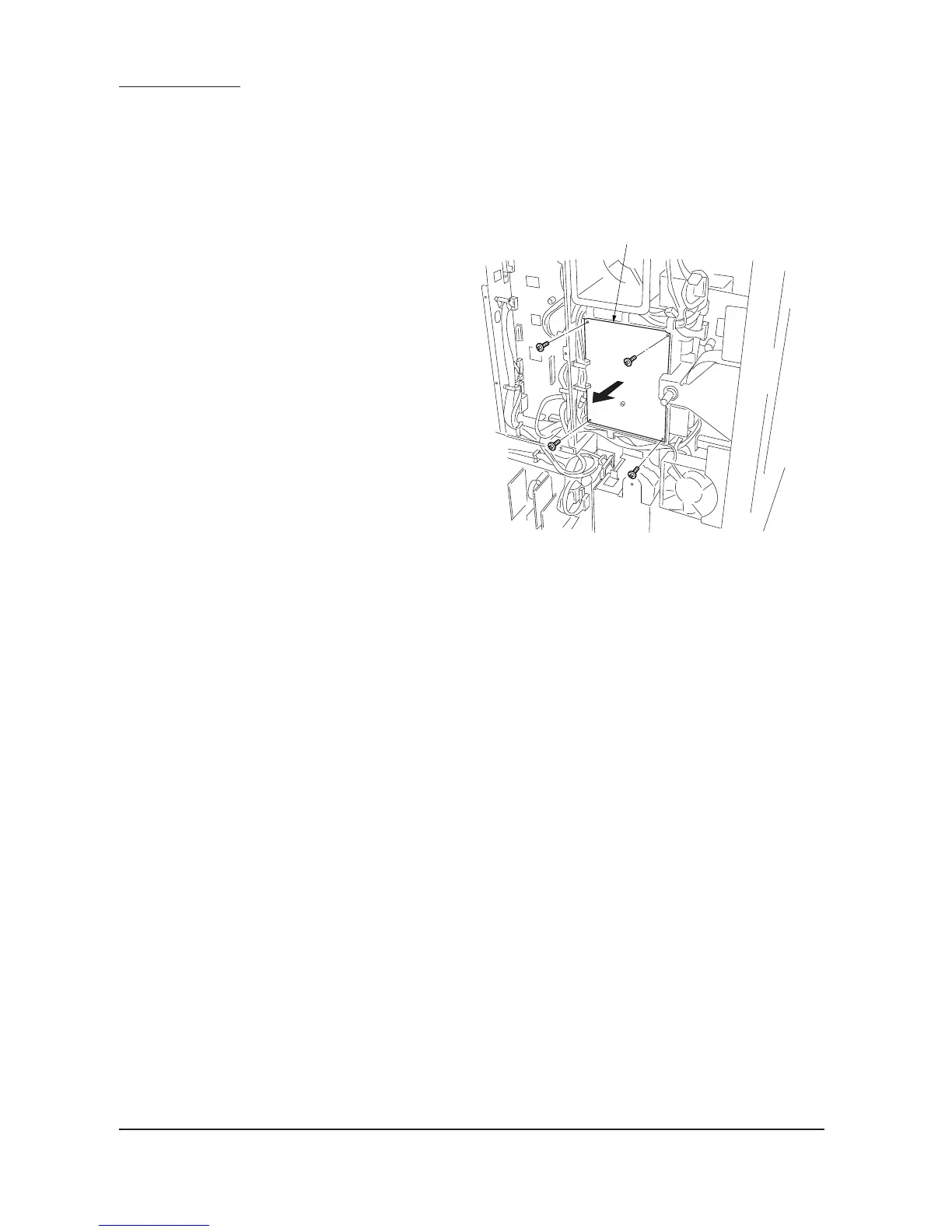

Figure 1-6-55
High-voltage transformer unit
