1-3-3
FS-9120DN/9520DN

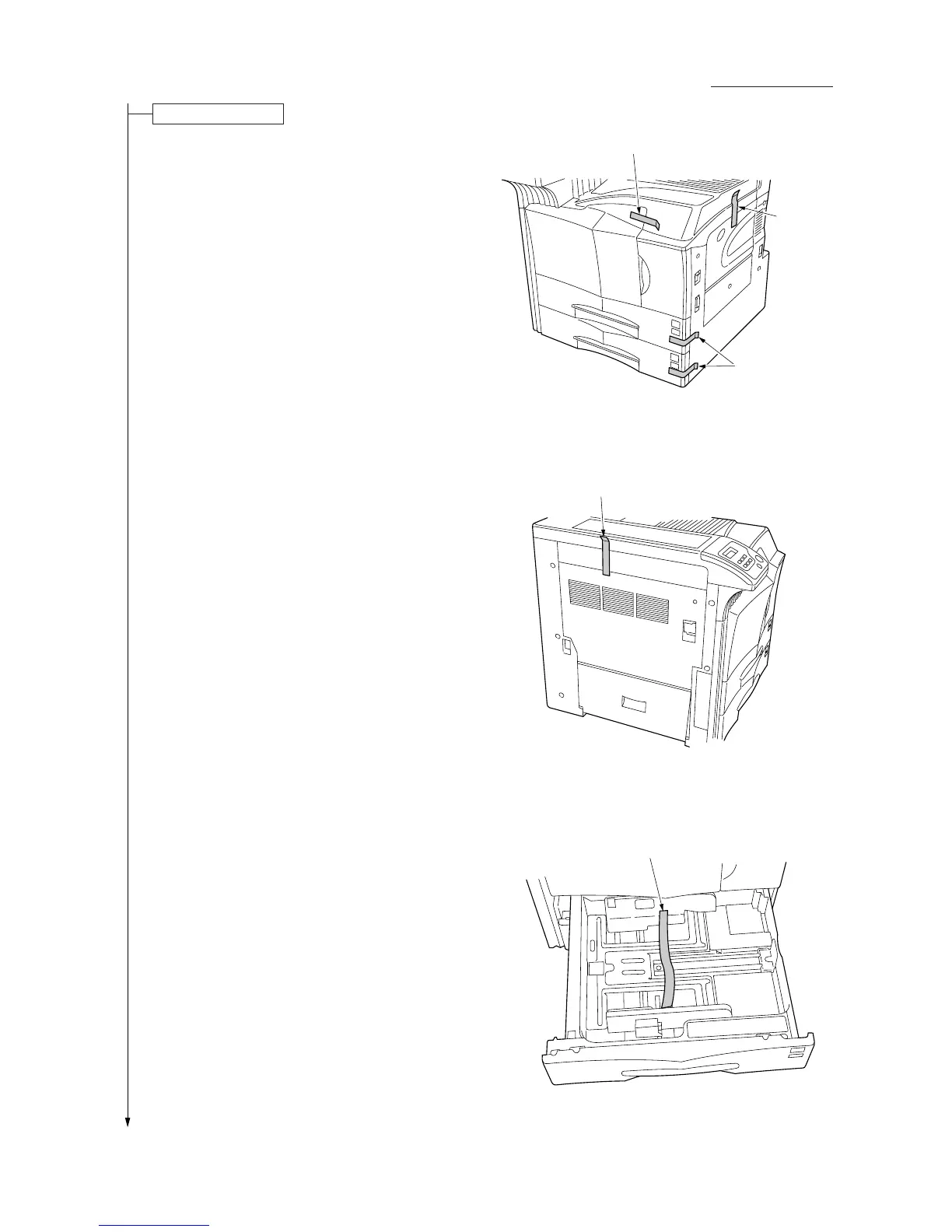

1. Remove the tape holding the front cover.
2. Remove the tape holding the MP tray.
3. Remove the two tapes holding the paper
cassettes.
4. Remove the tapes holding the conveying cover.
5. Pull out the upper paper cassette and remove the
two tapes holding the bottom plate.
6. Pull out the lower paper cassette and remove the
two tapes holding the bottom plate.
Removing the tapes.
Figure 1-3-3
Figure 1-3-4
Tape
Tape
Tapes
Tape
Tape
Figure 1-3-5
